Part Number # BJL36080LU
SKU # 2457660
BJL36080LU
Square D BJL36080LU
Part Number # BJL36080LU
SKU # 2457660
$1824.32 / Each
Typical price:$3000.00 / Each
Square D BJL36080LU Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | BJL36080LU |
| SKU #: | 2457660 |
| Actuator Type: | Toggle |
| Amperage Rating: | 80 A |
| Dimensions: | 5.39 in H x 3.19 in W x 4.09 in D |
| Enclosure Type: | NEMA AB4/IP40 |
| Frame: | B |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600Y/347 VAC |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -13 to 158 deg F |
| Trip Range: | 800 to 1200 A |
| Trip Type: | Thermal Magnetic |
| Wire Size: | 14 to 2/0 AWG, 14 to 3/0 AWG Al/Cu |
| Connection type: | Line/Load Lug |
| Mounting type: | DIN Rail/Threaded |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121601 |
| UPC: | 03606481149756 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1824.32 / Each
Typical price:$3000.00 / Each
Quantity:
- Schneider Electric PowerPact EverLink Molded Case Circuit Breaker, 600Y/347 VAC, 80 A, 50/60 Hz, 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600Y/347 VAC Interrupt, B Frame, Thermal Magnetic Trip, 800 to 1200 A Trip, 3 Poles, Toggle Actuator, Line/Load Lug, 14 to 2/0 AWG, 14 to 3/0 AWG Al/Cu Wire, NEMA AB4/IP40, DIN Rail/Threaded Mount, -13 to 158 deg F, 5.39 in H x 3.19 in W x 4.09 in D, Gray
BJL36080LU Application
Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Buildings and Industrial Building ApplicationsBJL36080LU Item Features
- Tackles last minute changes, when they come up, be ready with one-click field installable accessories and the industrys widest range of operating mechanisms
- The PowerPact B-frame circuit breakers are designed and certified to multiple standards in order to meet the needs of customers who have global designs or build and sell in regions with various standards
- B-frame circuit breakers have the smallest footprint in the PowerPact family of industrial molded case circuit breaker products
- PowerPact B-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits
- The B-frame product offers a flexible platform in which customer needs for various types of mounting and terminations can be accommodated with simple alterations of the base product
- Field installable features and termination variety empower the customer to configure the product to their exact needs for control panel or power panel applications
- https://www.youtube.com/embed/shhPTpqprpQ
BJL36080LU Standards
CSA C22.2 No. 5|CE Certified|CCC Certified|EAC Approved|EN/IEC 60947-2|EN/IEC 60947-5-1|GB 14048.2|NOM Certified|UL 489SKU #2457660Part Number #BJL36080LUUNSPSC39121601UPC03606481149756

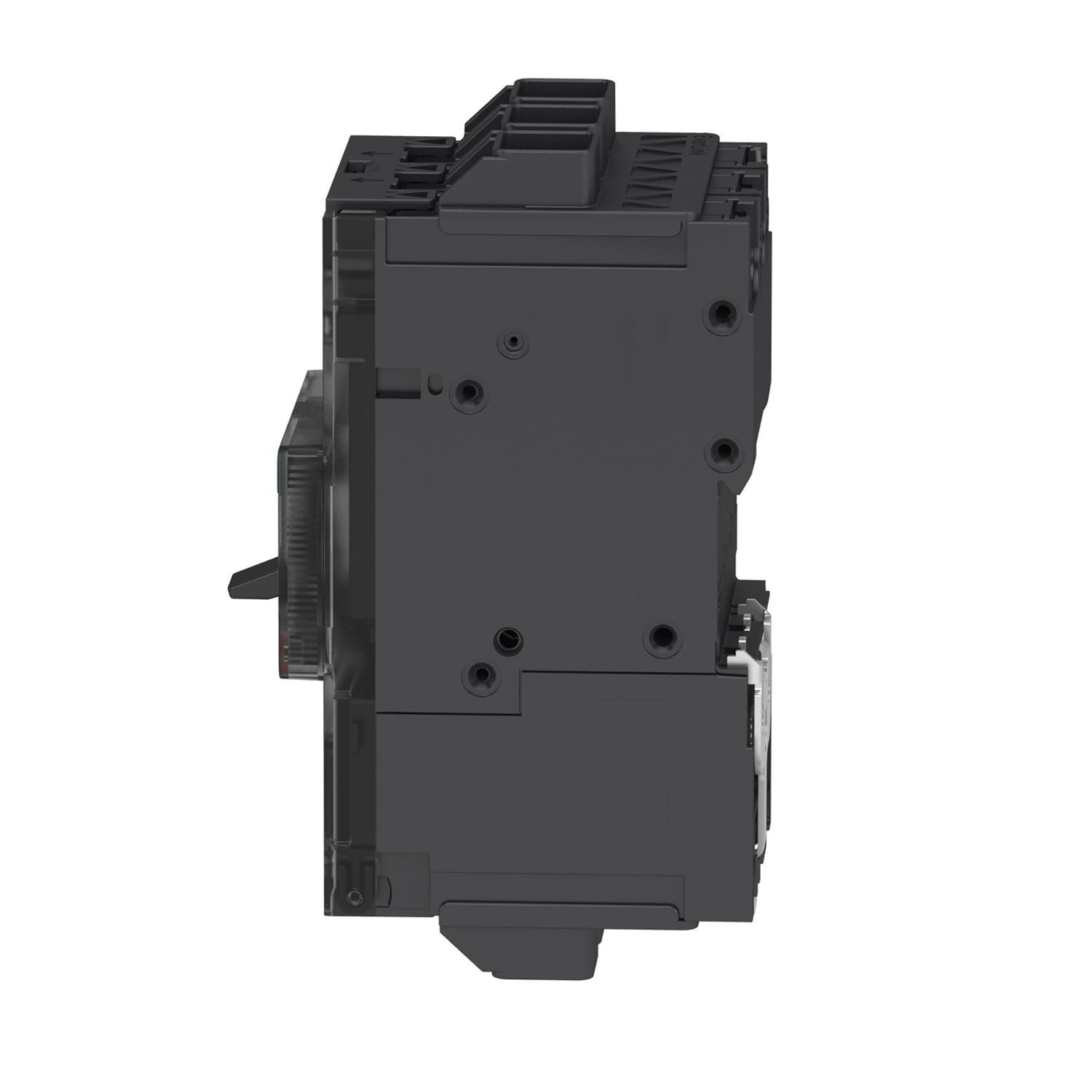

Image provided may only be a representation of final product and may include optional equipment
