Part Number # THQC2115WL
SKU # 2457929
ABB THQC2115WL Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | THQC2115WL |
| SKU #: | 2457929 |
| Actuator Type: | Pivot/Toggle Handle |
| Dimensions: | 3-9/32 in H x 2 in W x 2-3/8 in D |
| Type: | Type THQC Compact |
| UNSPSC: | 39121601 |
| UPC: | 00783164012521 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$106.07 / Each
Quantity:
- GE Q-Line Molded Case Circuit Breaker, Type THQC Compact, 120/240 V AC, 15 A, 50/60 Hz Frequency, 10 kA Interrupt, Q-Line Frame, Thermal Magnetic Trip, 2 Pole, 1 ph, Pivot/Toggle Handle Actuator, Line/Load Lug Connection, 14 to 8 AWG, 12 to 8 AWG Wire, 10 to 50 deg C, 3-9/32 in H x 2 in W x 2-3/8 in D Dimensions, Plastic
THQC2115WL Application
Residential, Commercial, Electrical Distribution and Control ApplicationsTHQC2115WL Item Features
- Molded case is molded from high mechanical and high dielectric strength engineered plastic
- Trip indication is shown by handle position midway between ON and off to reset the trip mechanism, move the handle to extreme off then to ON position
- Quick-make, quick-break, trip-free mechanism minimizes arcing during breaker operation, contacts cannot be teased into position
- Trip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in on position
- VERIFIER "twist-to-trip" and push-to-trip mechanically simulates over current tripping through actuation of linkages not operated by the on-off handle
- Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
- Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
- Arc chutes of heat absorbing, insulating material and metal grid plates quickly extinguish arcs
- UL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight in wiring
- 10 kA at 120 VAC, 10 kA at 120/240 VAC interrupt rating
THQC2115WL Standards
E11592SKU #2457929Part Number #THQC2115WLUNSPSC39121601UPC00783164012521

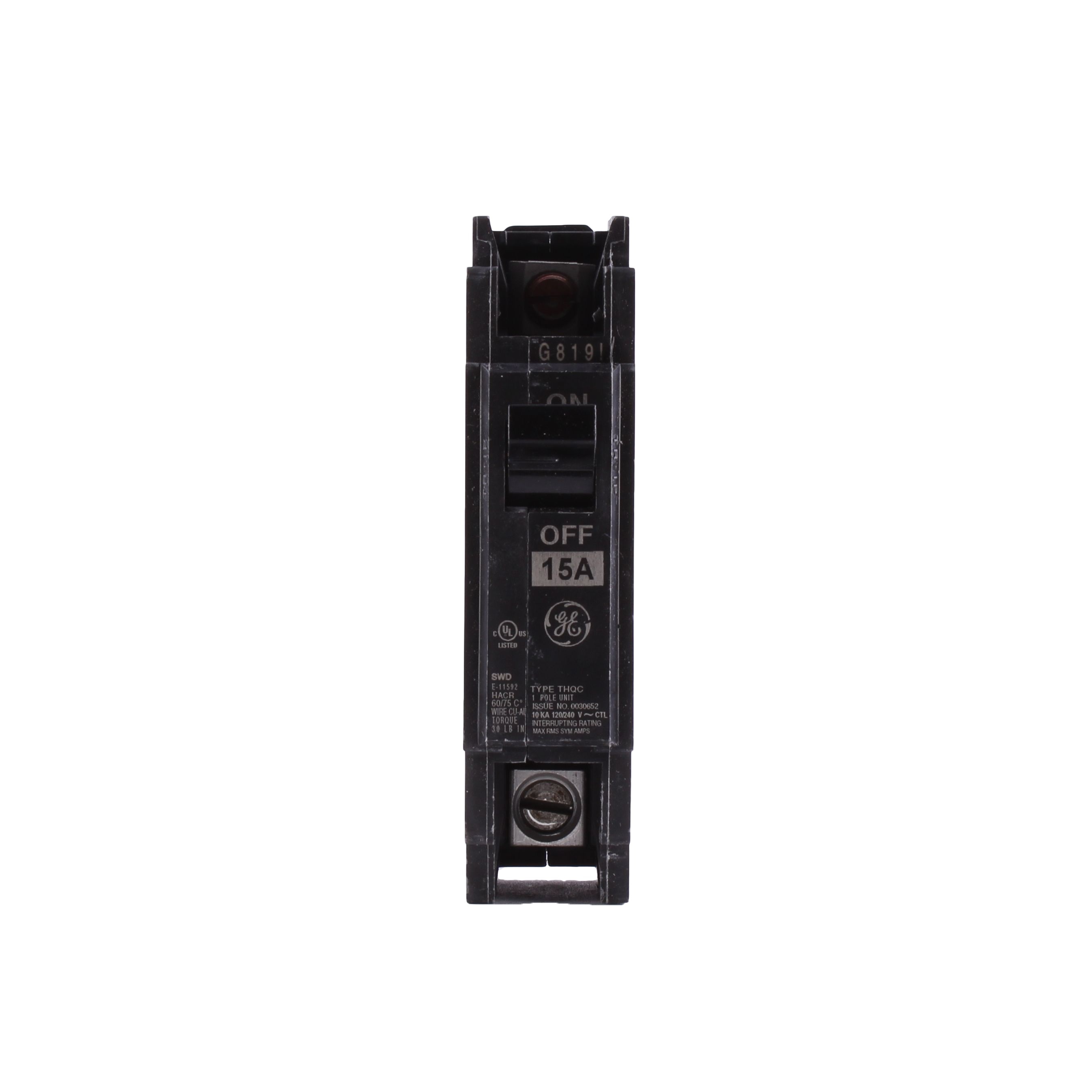

Image provided may only be a representation of final product and may include optional equipment
