Part Number # THQC2130WL
SKU # 2457939
Image Disclaimers Message
ABB THQC2130WL Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | THQC2130WL |
| SKU #: | 2457939 |
| Actuator Type: | Pivot/Toggle Handle |
| Amperage Rating: | 30 A |
| Dimensions: | 3-9/32 in H x 2 in W x 2-3/8 in D |
| Frame: | Q-Line |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 10 kA |
| Number of Poles: | 2 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | 10 to 50 deg C |
| Trip Type: | Thermal Magnetic |
| Type: | Type THQC Compact |
| Wire Size: | 14 to 8 AWG, 12 to 8 AWG |
| Connection type: | Line/Load Lug |
| Material: | Plastic |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121601 |
| UPC: | 00783164012545 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

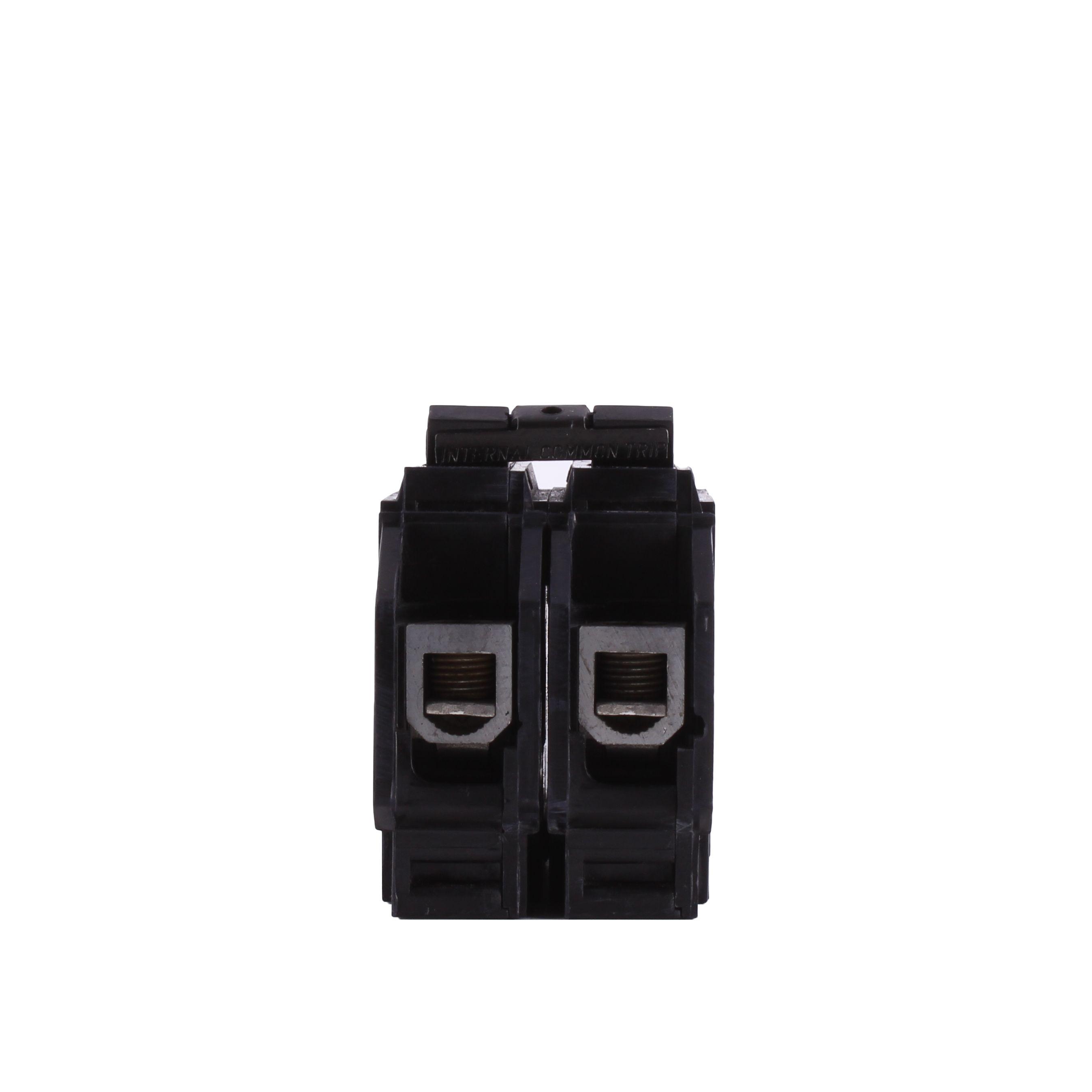

ABB THQC2130WL
Brand: ABB
Part Number: THQC2130WL
Additional Description: ABB -THQC2130WL CIRCUIT BREAKER 2P 30A 120/240V 10KA
Catalog Description: Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QC breakers are lug-lug versions of the Q Line and are available for 35mm DIN rail mounting. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions and can be ordered with auxiliary contact and shunt trip accessories. 30WL Amps 30 A
THQC2130WL Application
Residential, Commercial, Electrical Distribution and Control ApplicationsTHQC2130WL Includes
LugTHQC2130WL Item Features
- Molded case is molded from high mechanical and high dielectric strength engineered plastic
- Trip indication is shown by handle position midway between ON and off to reset the trip mechanism, move the handle to extreme off then to ON position
- Quick-make, quick-break, trip-free mechanism minimizes arcing during breaker operation, contacts cannot be teased into position
- Trip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in on position
- VERIFIER "twist-to-trip" and push-to-trip mechanically simulates over current tripping through actuation of linkages not operated by the on-off handle
- Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
- Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
- Arc chutes of heat absorbing, insulating material and metal grid plates quickly extinguish arcs
- UL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight in wiring
- 10 kA at 120 VAC, 10 kA at 120/240 VAC interrupt rating
THQC2130WL Standards
E11592SKU #2457939Part Number #THQC2130WLUNSPSC39121601UPC00783164012545
