Part Number # RL-100033B14
SKU # 2458309

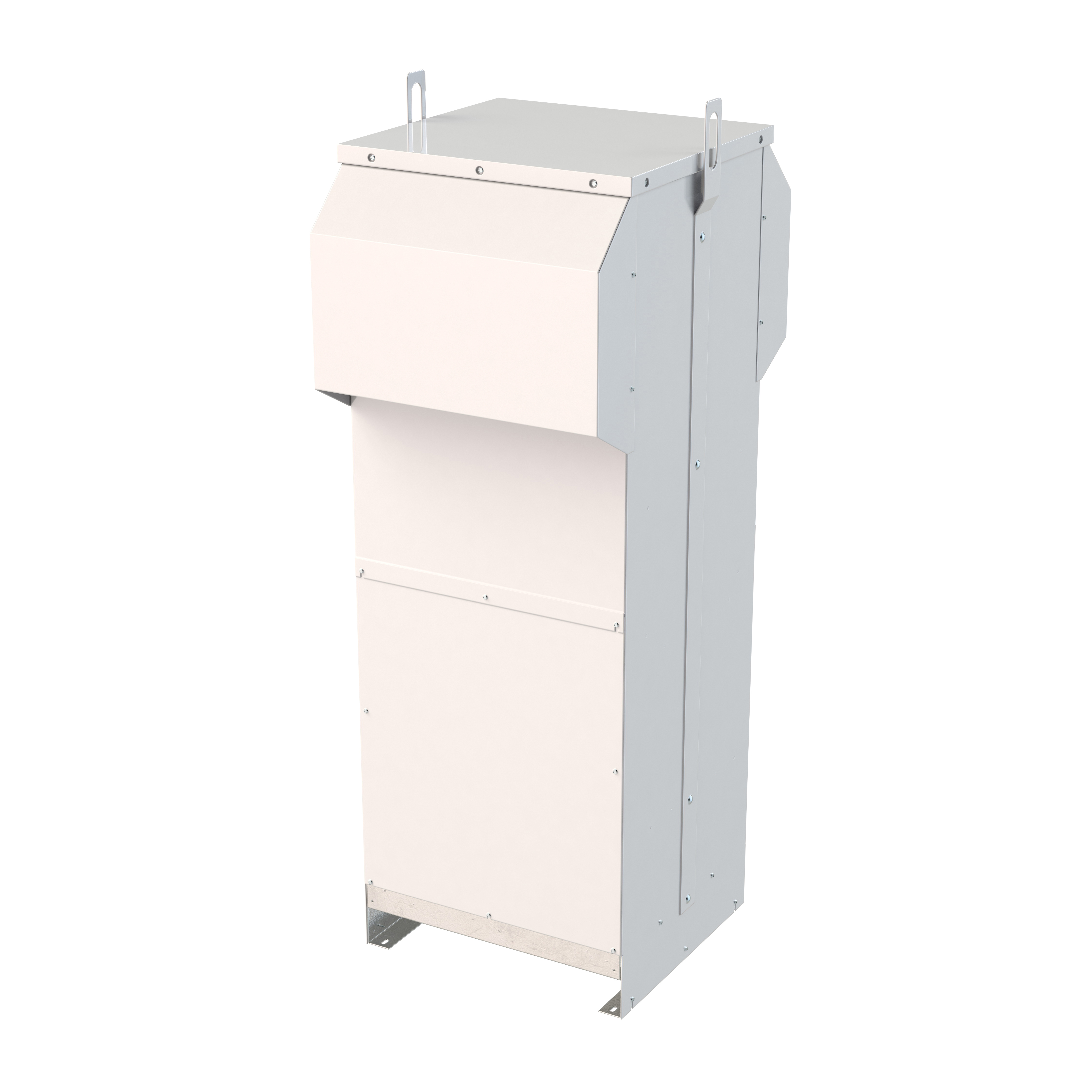

Image provided may only be a representation of
final product and may include optional equipment
RL-100033B14
MTE RL-100033B14 Line/Load Reactor, 208 to 690 V AC, 1000 A, 800 to 1000 hp, 72 in H x 26-1/2 in W
Part Number # RL-100033B14
SKU # 2458309
$15698.00
RL-100033B14 Key Features
| Part Number # : | RL-100033B14 |
|---|---|
| SKU #: | 2458309 |
| Amperage Rating: | 1000 A |
| Enclosure Type: | NEMA 3R |
| Finish: | Polyester Powder Coated |
| Horsepower: | 800 to 1000 hp |
| Phase: | 1 or 3 |
| Series: | RL Series |
| Country of origin: | MX |
| Depth: | 25 in |
| Height: | 72 in |
| Mounting type: | Surface |
| Width: | 26-1/2 in |
| Manufacturer Name: | MTE Corporation |
| UNSPSC: | 39121015 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$15698.00
Quantity:
- MTE Line/Load Reactor, Series: RL Series, 208 to 690 V AC, 1000 A, 800 to 1000 hp, 1 or 3 ph, 72 in Height, 26-1/2 in Width, 25 in Depth, NEMA 3R Enclosure, Surface Mounting, Gray, Polyester Powder Coated
RL-100033B14 Application
Motor Protection, Harmonic Mitigation, Variable Frequency Drives (VFDs), Pumps, Fans, Compressors, Chillers, Artificial Lifting, Air Handlers, MCCs, Elevators, Escalators, Water/Wastewater, HVAC, Oil and Gas, Data Centers, Marine, Irrigation, Food and Beverage, Agriculture and Industrial ApplicationsRL-100033B14 Includes
(1) Reactor Assembly in a NEMA 3R CabinetRL-100033B14 Item Features
- Best-in-class line/load reactors
- 150% continuous overload
- Line/load interchangeability without derating
- Most robust, highest continuous service factor
- Low watts loss
- Reduces line side harmonic distortion to 30 to 35%
- Reduces load side dv/dt rate, motor peak terminal voltage, operating temperature and audible noise
- Improves waveform integrity for enhancement of motor performance and system efficiency
- https://youtu.be/VaRA_bngkTs
RL-100033B14 Standards
RoHS Compliant|REACH Compliant|UL 506|UL 508A|CSA 22.2 #66-1988SKU #2458309Part Number #RL-100033B14UNSPSC39121015UPC
