Part Number # 17FUF92NG
SKU # 2459328
17FUF92NG
Siemens 17FUF92NG
Part Number # 17FUF92NG
SKU # 2459328
$2259.50 / Each
Typical price:$4519.00 / Each
Siemens 17FUF92NG Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 17FUF92NG |
| SKU #: | 2459328 |
| Auxiliary Contact Rating: | 10 A at 600 VAC, 5 A at 600 VDC |
| Coil Voltage: | 190 to 220 V AC, 220 to 240 V AC |
| Dimensions: | 24 in H x 11 in W x 8 in D |
| Enclosure Type: | NEMA 12 |
| Frequency Rating: | 50/60 Hz |
| Motor Power: | 10 hp, 15 hp, 25 hp |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -4 to 104 deg F |
| Overload Relay: | Solid-State |
| Reset Type: | Automatic/Manual/Remote |
| Setting: | 13 to 52 A |
| Type: | SZ 2 Class 17 Dust/Watertight Full Voltage Heavy Duty Non-Reversing Weatherproof |
| Connection type: | Box Lug |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00662643810912 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2259.50 / Each
Typical price:$4519.00 / Each
Quantity:
Siemens 17FUF92NG
Brand: Siemens
Part Number: 17FUF92NG
Additional Description: SIEM-17FUF92NG STARTER,COMBO SZ2,13-52AMPS,N12/3R,240V
Catalog Description: Non-reversing motor starter, Size 2, Three phase full voltage, Solid-state overload relay, OLR amp range 13-52A, 190 220/220 240V 50/60Hz coil, Combination type, 60A non-fusible disconnect, Enclosure NEMA type 4/12, Water/dust tight for outdoors, Standard width enclosure
17FUF92NG Application
Industrial and Outdoor Applications17FUF92NG Item Features
- Manufactured with cold forming "TOX" process
- Easy to install
- Heavy duty quarter turns
- 100 kA short circuit current rating when protected with Class R fuses to 600 V or MCP to 480 V
- Visible blade disconnect
- Industrial type disconnect handle
- 10 hp at 200/208 VAC, 15 hp at 220/230 VAC, 25 hp at 460/480 VAC, 25 hp at 575/600 VAC
- Box lug line side/load side outgoing feeder connection
- 220 to 240 VAC at 60 Hz, 190 to 220 VAC at 50 Hz coil voltage
17FUF92NG Standards
CSA File No. LR 6535|UL File No. E185287SKU #2459328Part Number #17FUF92NGUNSPSC39121521UPC00662643810912

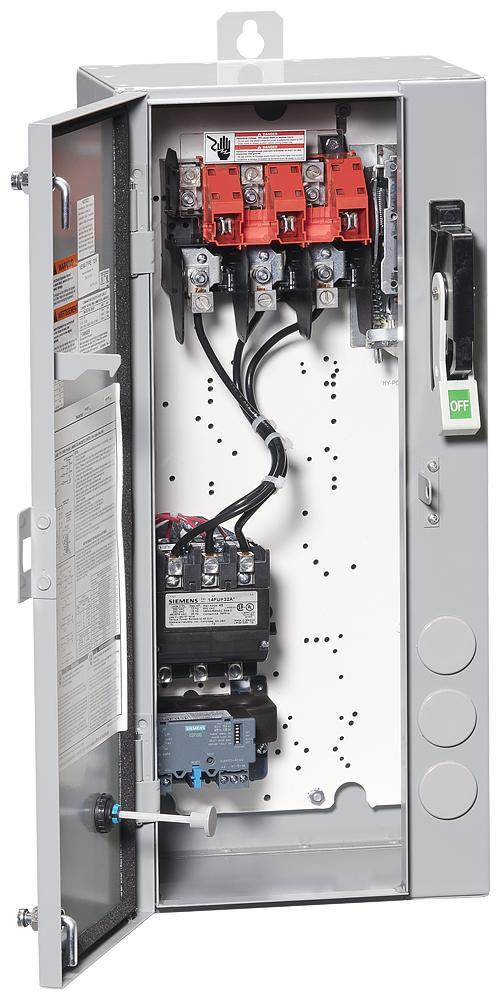

Image provided may only be a representation of final product and may include optional equipment
