Part Number # 3SU11001GB201PA0
SKU # 2459733
3SU11001GB201PA0

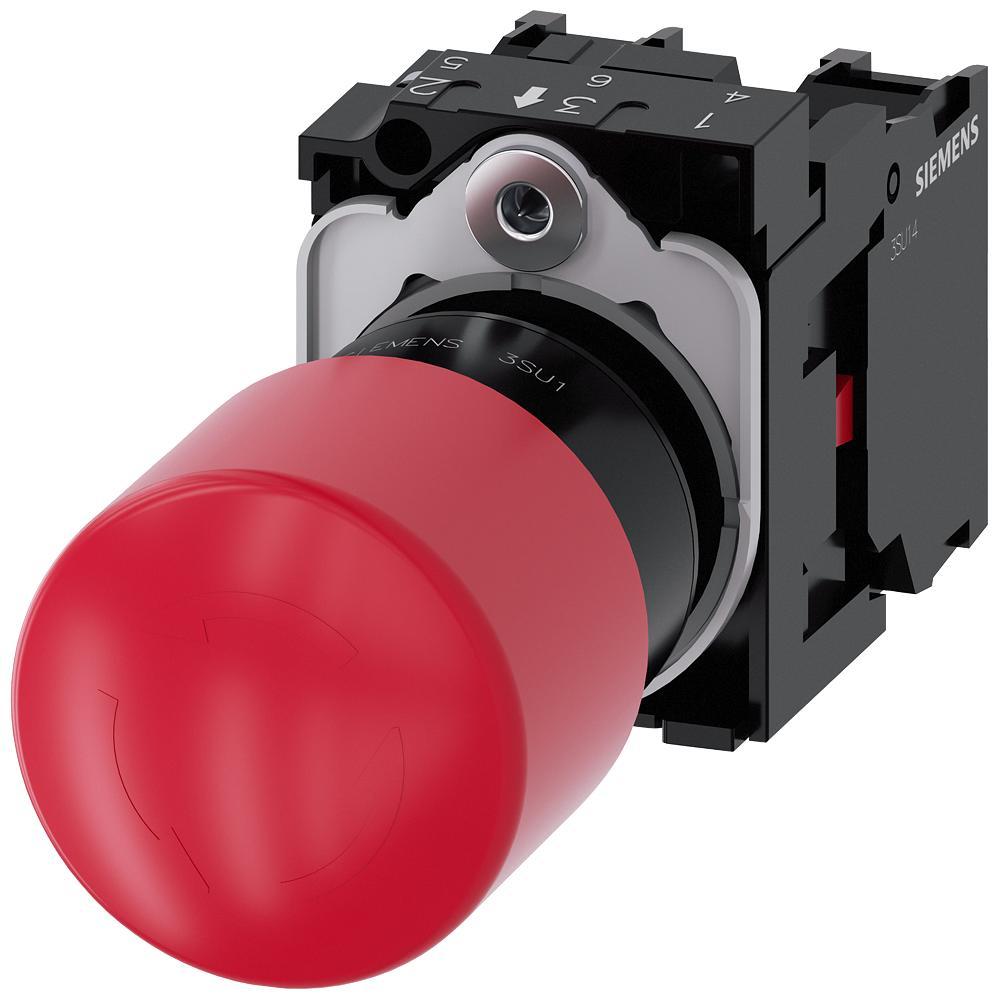

Siemens 3SU11001GB201PA0
Part Number # 3SU11001GB201PA0
SKU # 2459733
$97.24 / Each
Typical price:$194.50 / Each
Siemens 3SU11001GB201PA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SU11001GB201PA0 |
| SKU #: | 2459733 |
| Actuator: | Positive Latching |
| Enclosure Type: | NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69K |
| Environmental Conditions: | -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature |
| Series: | 3SU1 |
| Size: | 22 mm |
| Terminal Type: | Screw Terminal |
| Type: | Emergency Stop |
| Connection type: | Screw Terminal |
| Country of origin: | DE |
| Material: | Plastic |
| Mounting type: | Front Plate |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121545 |
| UPC: | 00195125114364 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$97.24 / Each
Typical price:$194.50 / Each
Quantity:
- Siemens, 3SU11001GB201PA0, Pushbutton, Emergency Stop, Series: 3SU1, 22 mm Size, Positive Latching Actuator, Screw Terminal Connection, NEMA 1/2/3/3R/4/4X/12/13/IP66/IP67/IP69K Enclosure, Front Plate Mounting, Plastic, Red, Environmental Conditions: -25 to 70 deg C Operating Temperature, -40 to 80 deg C Storage Temperature
3SU11001GB201PA0 Item Features
- Degree of protection IP66, IP67, IP69 (IP69K)
- Service life of 100 000 hrs thanks to use of LEDs
- Media resistance (chemicals) thanks to solid stainless steel and high-grade plastics
- Mechanical endurance of 10 x 10 operating cycles
- Suitable for use in extreme environments
- Reliable, friction-locked fixing with just one screw
- Design stability according to use
- Simple geometry for mounting holes
- Direct connection of the enclosure to AS-interface or IO-link
- Direct connection in the control cabinet to PROFINET, IO-link or AS-interface
- Can be integrated easily via the TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- An actuating or signaling element in front of the control panel
- A holder for securing behind the control panel
- Up to six contact modules and/or one LED module (mounted on the holder), 1-pole contacts can be stacked
3SU11001GB201PA0 Standards
RoHS Compliant|WEEE Listed|AL : N / ECCN : NSKU #2459733Part Number #3SU11001GB201PA0UNSPSC39121545UPC00195125114364
Image provided may only be a representation of final product and may include optional equipment
