Part Number # 3LD5210-0TK11
SKU # 2460161
3LD5210-0TK11

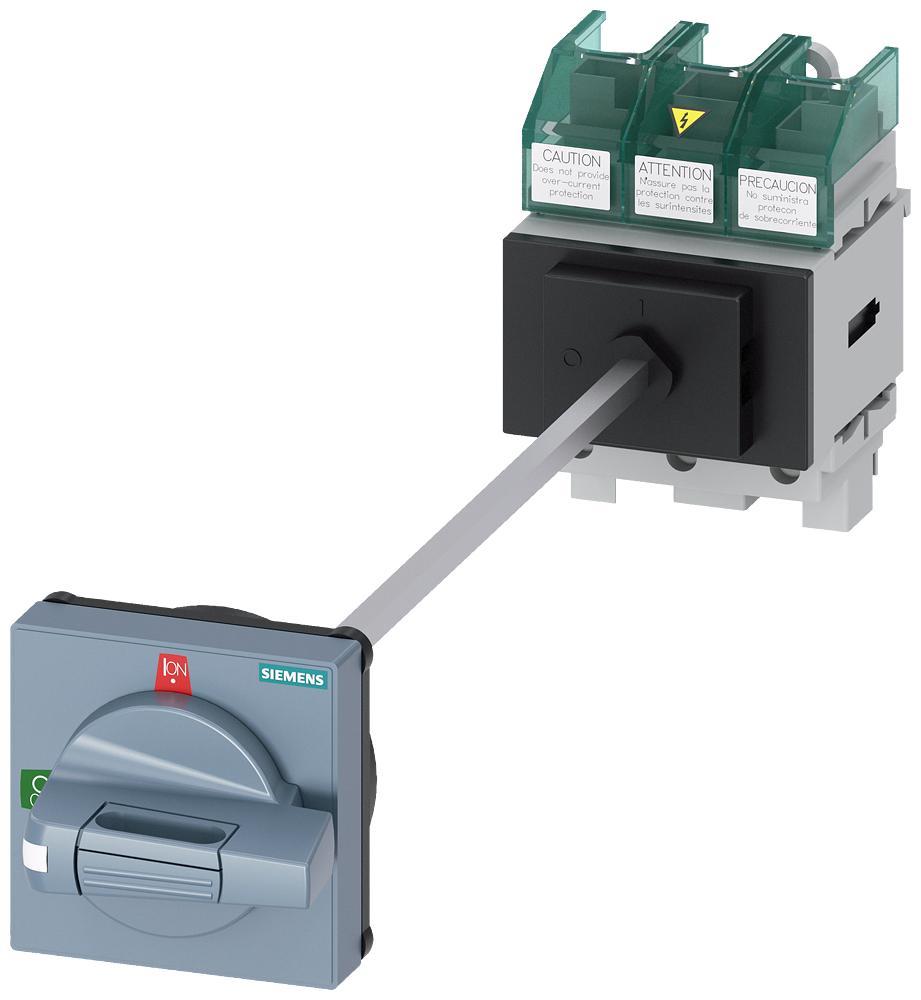

Siemens 3LD5210-0TK11
Part Number # 3LD5210-0TK11
SKU # 2460161
$340.87 / Each
Typical price:$1115.00 / Each
Siemens 3LD5210-0TK11 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3LD5210-0TK11 |
| SKU #: | 2460161 |
| Actuator Type: | Door Coupling Rotary Operating Handle |
| Dimensions: | 75 mm W x 408 mm D x 106 mm H |
| Enclosure Type: | NEMA 1/3R/4X/12/IP65 |
| Series: | 3LD5 |
| Short Circuit Current Rating (kA): | 50 kA |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Type: | Molded Case |
| Mounting type: | 4-Hole/Front/Floor/Fixed/Rail |
| UNSPSC: | 39122233 |
| UPC: | 00195125134508 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$340.87 / Each
Typical price:$1115.00 / Each
Quantity:
- Siemens Switch Disconnector, Molded Case, Series: 3LD5, 480 V AC, 60/63 A, 40 hp, 3 ph, 50/60 Hz Frequency, 3 Pole, 50 kA Short Circuit, Door Coupling Rotary Operating Handle Actuator, NEMA 1/3R/4X/12/IP65 Enclosure, 4-Hole/Front/Floor/Fixed/Rail Mounting, Box Terminal, -25 to 55 deg C, 75 mm W x 408 mm D x 106 mm H, Black
3LD5210-0TK11 Application
For used in all machining and processing machines to be exported to the US, main switch, safety switch, maintenance/repair switch3LD5210-0TK11 Includes
Terminal Covers for the Infeed Side3LD5210-0TK11 Item Features
- Main switch for UL and IEC
- Compact design
- Large variety of accessories (suitability as main switch for industrial machinery)
- Defeatable, standard door coupling rotary operating mechanisms
- Without tolerance compensation
3LD5210-0TK11 Standards
CE Certified|DIN EN 60204-1/VDE 0660 Part 107|EAC Certified|ECCN Approved|EN 60947-3|IEC 60947-1/60947-3/60947-4-1|REACH Article 33|RoHS 2011/65/EU and 2015/863/EU|UL 489/60947-4-1|WEEE 2012/19/EUSKU #2460161Part Number #3LD5210-0TK11UNSPSC39122233UPC00195125134508
Image provided may only be a representation of final product and may include optional equipment
