Part Number # 3LD3448-1TK53
SKU # 2460637
3LD3448-1TK53
Siemens 3LD3448-1TK53
Part Number # 3LD3448-1TK53
SKU # 2460637
$342.40 / Each
Typical price:$448.00 / Each
Siemens 3LD3448-1TK53 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3LD3448-1TK53 |
| SKU #: | 2460637 |
| Actuator Type: | Rotary Operating Handle/Short Rotary Knob |
| Dimensions: | 47 mm W x 380 mm D x 60 mm H |
| Enclosure Type: | NEMA 1/3R/4X/12/IP65 |
| Horsepower: | 25/30 hp |
| Series: | 3LD3 |
| Short Circuit Current Rating (kA): | 5/6 kA |
| Mounting type: | Floor/Front/Fixed/Rail |
| UNSPSC: | 39122233 |
| UPC: | 00195125070455 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$342.40 / Each
Typical price:$448.00 / Each
Quantity:

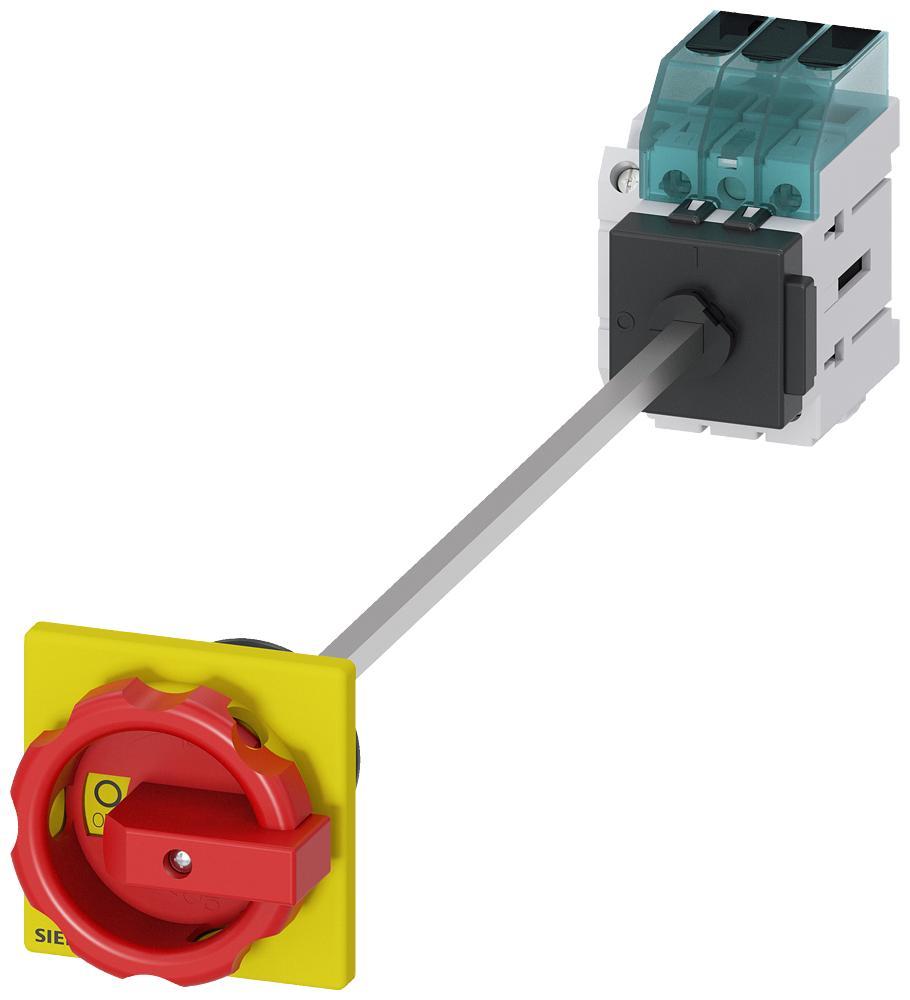

- Siemens Load Switch Disconnector, Series: 3LD3, 600 V AC, 63 A, 25/30 hp, 50/60 Hz Frequency, 3 Pole, 5/6 kA Short Circuit, 1NO-1NC 1 Form A/1 Form B Contact Form, Rotary Operating Handle/Short Rotary Knob Actuator, NEMA 1/3R/4X/12/IP65 Enclosure, Floor/Front/Fixed/Rail Mounting, Box Terminal, -25 to 55 deg C, 47 mm W x 380 mm D x 60 mm H, Red/Yellow
3LD3448-1TK53 Application
For switching machines, switching 3 ph motors and other loads during maintenance and repair work, main switch, emergency off switch, safety switch3LD3448-1TK53 Includes
Terminal Covers for the Infeed Side3LD3448-1TK53 Item Features
- Basic switch with door coupling
- 22.5 mm central hole mounting
- 66 x 66 mm red/yellow rotary actuator
- 25 hp at 480 VAC/30 hp at 600 VAC
- 5 kA short time withstand current/6 kA conditional short circuit current
3LD3448-1TK53 Standards
CCC Certified|CE Certified|EAC Certified|ECCN Approved|IEC 60947-1/60947-3|REACH Article 33|RoHS 2011/65/EU and 2015/863/EU|UL 508/60947-4-1|WEEE 2012/19/EUSKU #2460637Part Number #3LD3448-1TK53UNSPSC39122233UPC00195125070455
Image provided may only be a representation of final product and may include optional equipment
