Part Number # 6FX80025CS361BJ0
SKU # 2463836
6FX80025CS361BJ0
Siemens 6FX80025CS361BJ0
Part Number # 6FX80025CS361BJ0
SKU # 2463836
$579.94 / Each
Typical price:$780.69 / Each
Siemens 6FX80025CS361BJ0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 6FX80025CS361BJ0 |
| SKU #: | 2463836 |
| Conductor Size: | 2.5 sq-mm |
| Conductor Type: | C/D Type Prepared |
| Jacket Color: | Orange |
| Jacket Material: | PUR |
| Number of Conductors: | 4 |
| Outside Diameter: | 11 mm |
| Temperature Rating (Degrees F): | -50 to 80 deg C |
| Type: | Pre-Assembled Trailable |
| Country of origin: | SK |
| Insulation material: | CFC |
| Length: | 18 m |
| Manufacturer Name: | Siemens |
| UNSPSC: | 26121629 |
| UPC: | 00195125085046 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$579.94 / Each
Typical price:$780.69 / Each
Quantity:
- Siemens MOTION-CONNECT 800PLUS Power Cable, Pre-Assembled Trailable, Reel Packaging, 600/1000 V, 4 Conductors, C/D Type Prepared Conductor, 2.5 sq-mm Conductor, 11 mm OD, 18 m Length, Full Thread Connector End Style, CFC Insulation, PUR Jacket, Orange Jacket,-50 to 80 deg C
6FX80025CS361BJ0 Application
For use in machines6FX80025CS361BJ0 Item Features
- Meets requirements for use in cable carriers
- Suitable for high mechanical loading
- Oil resistance
- Pre-assembled MOTION-CONNECT cables provide high quality and perfect, system tested functionality
- Fast, stable and reliable connections can be made with the new, pre-assembled cables with SPEED-CONNECT connectors
- With a short rotation as far as the stop, the cap nut of the connector secures the connection
- The cables with SPEED-CONNECT connectors supplement the established range of MOTION-CONNECT cables with full thread connectors
6FX80025CS361BJ0 Standards
CSA C22.2 File No. 210.2-M90|EN 60332-1-1 to 1-3|EN 60811-2-1|REACH Article 33|UL 758|WEEE 2012/19/EUSKU #2463836Part Number #6FX80025CS361BJ0UNSPSC26121629UPC00195125085046

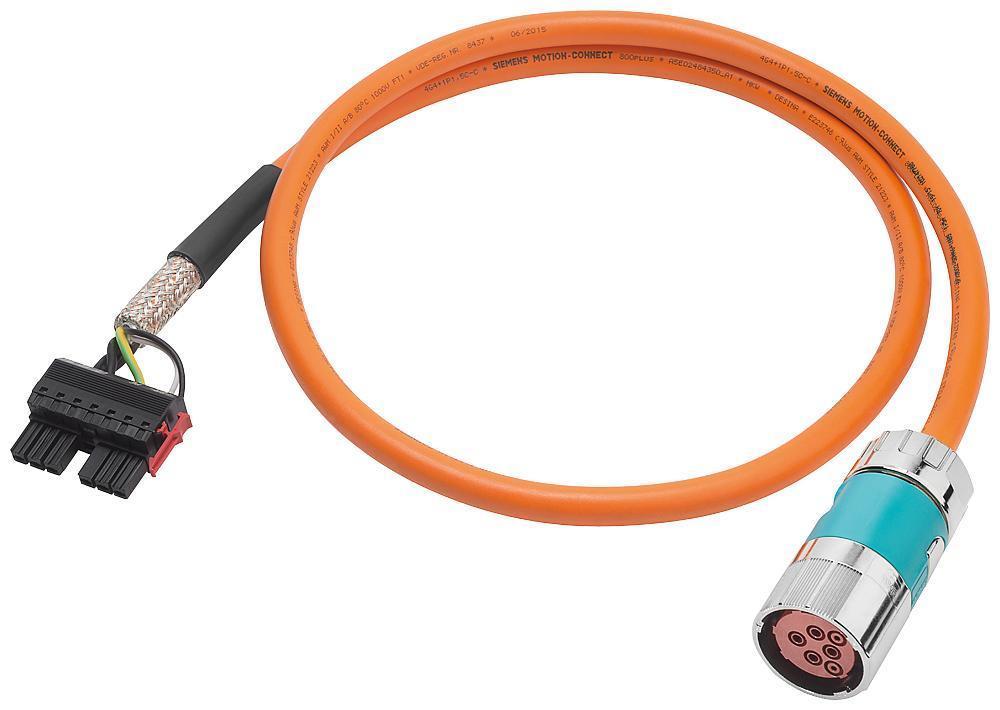

Image provided may only be a representation of final product and may include optional equipment
