3SU11521GB203PW0
Siemens 3SU11521GB203PW0
Part Number # 3SU11521GB203PW0
SKU # 2464009
$108.31 / Each
Typical price:$223.00 / Each
Siemens 3SU11521GB203PW0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SU11521GB203PW0 |
| SKU #: | 2464009 |
| Actuator: | Round |
| Contact Configuration: | 1NC |
| Enclosure Type: | NEMA 1/3/3R/4/4X/12/13/IP66/IP67/IP69/IP20 |
| Environmental Conditions: | -25 to 70 deg C |
| Lamp Type: | LED |
| Operator Type: | 22 mm Mushroom Head |
| Series: | 3SU1 |
| Size: | 22 mm |
| Terminal Type: | Spring |
| Type: | Emergency Stop Mushroom |
| Connection type: | Spring Loaded Terminal |
| Country of origin: | DE |
| Material: | Plastic |
| Mounting type: | Front Plate |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121545 |
| UPC: | 00195125135215 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$108.31 / Each
Typical price:$223.00 / Each
Quantity:

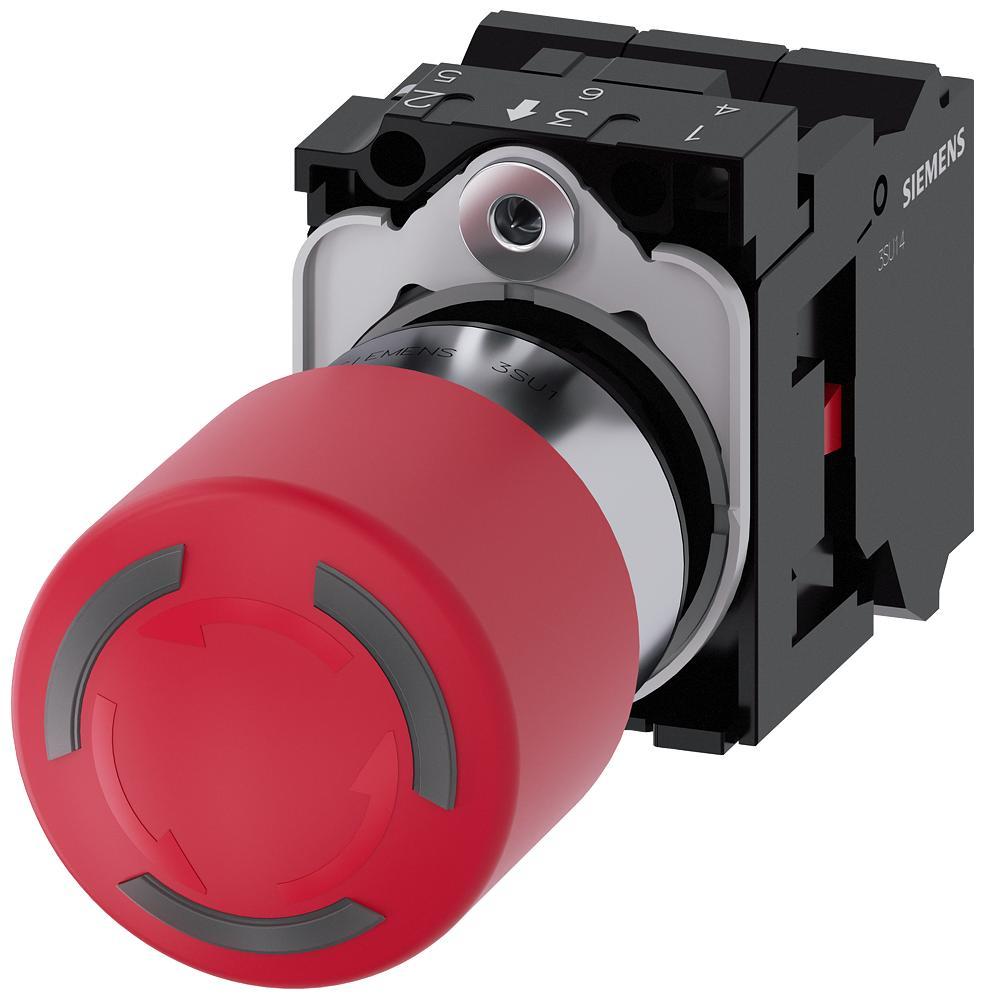

- Siemens, 3SU11521GB203PW0, Pushbutton, Emergency Stop Mushroom, Series: 3SU1, 22 mm Size, 1NC Contact Configuration, Rotate to Unlatch Contact Mode, 22 mm Mushroom Head Operator, LED Lamp, Round Actuator, Spring Loaded Terminal Connection, NEMA 1/3/3R/4/4X/12/13/IP66/IP67/IP69/IP20 Enclosure, Front Plate Mounting, Plastic, Red, Environmental Conditions: -25 to 70 deg C
3SU11521GB203PW0 Item Features
- Degree of protection IP66, IP67, IP69 (IP69K)
- Service life of 100 000 hrs thanks to use of LEDs
- Media resistance (chemicals) thanks to solid stainless steel and high-grade plastics
- Mechanical endurance of 10 x 10 operating cycles
- Suitable for use in extreme environments
- Reliable, friction-locked fixing with just one screw
- Design stability according to use
- Simple geometry for mounting holes
- Direct connection of the enclosure to AS-interface or IO-link
- Direct connection in the control cabinet to PROFINET, IO-link or AS-interface
- Can be integrated easily via the TIA portal
- Self-holding function of the actuator when mounting
- Twist prevention integrated into patented holder design
- Stackable contact modules
- Self-explanatory and fast installation using one hand
- Components can be mounted with holder removed
- An actuating or signaling element in front of the control panel
- A holder for securing behind the control panel
- Up to six contact modules and/or one LED module (mounted on the holder), 1-pole contacts can be stacked
3SU11521GB203PW0 Standards
RoHS Compliant|WEEE Listed|AL : N / ECCN : NSKU #2464009Part Number #3SU11521GB203PW0UNSPSC39121545UPC00195125135215
Image provided may only be a representation of final product and may include optional equipment
