Part Number # 1FK22064AF001SA0
SKU # 2464425
1FK22064AF001SA0
Siemens 1FK22064AF001SA0
Part Number # 1FK22064AF001SA0
SKU # 2464425
$2016.79 / Each
Typical price:$2714.90 / Each
Siemens 1FK22064AF001SA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 1FK22064AF001SA0 |
| SKU #: | 2464425 |
| Dimensions: | 125 mm W |
| Horsepower: | 2.31/3.82 hp |
| Series: | 1FK2 |
| Insulation class: | Class B/F |
| UNSPSC: | 26101109 |
| UPC: | 00195125061637 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2016.79 / Each
Typical price:$2714.90 / Each
Quantity:
- Siemens SIMOTICS S Servo Motor, Compact Natural Cooling, Series: 1FK2, Permanent Magnet Synchronous Special Features, 2.31/3.82 hp, 200 to 240/380 to 480 V AC, 7.3 A, 3000 rpm Speed, IP64 Enclosure, 24 mm Dia x 50 mm H Shaft, 12 N-m Torque, IM B5/IM V1/IM V3 Mounting, 5 to 104 deg F, Insulation Class: Class B/F, 125 mm W Dimensions
1FK22064AF001SA0 Application
Packaging Machines, Handling Equipment, Feed and Withdrawal Devices, Stacking Units, Automatic Assembly Machines, Laboratory Automation, Woodworking, Glass and Ceramic Industries and Digital Printing Machines1FK22064AF001SA0 Item Features
- With AS22DQC encoder, OCC interface
- With shaft with feather key, without brake
- The SIMOTICS S-1FK2 servomotors fully exploit their strengths in the system with the SINAMICS S210 converter
- Short adjustment and positioning times
- Quick and precise compensation of disturbances
- Stable closed loop control with high dynamic response
- This is achieved by rapid control cycle, high pulse frequency, complex rule algorithms, high resolution optical encoder with fast scanning, low moment of inertia of the motors, high overload capability
- Precise, stable control with medium to high masses to be moved with medium moment of inertia
- https://sie.ag/2MZJ9zz|https://sie.ag/36RsXr0
1FK22064AF001SA0 Standards
CE Certified|cULus Recognized|DIN 748-3, 42955|EN 60034-5, 60034-6, 60034-7, 60034-14, 60034-1|IEC 60034-1, 60034-7, 60034-5, 60072-1, 60034-14|REACH Article 33|WEEE 2012/19/EUSKU #2464425Part Number #1FK22064AF001SA0UNSPSC26101109UPC00195125061637

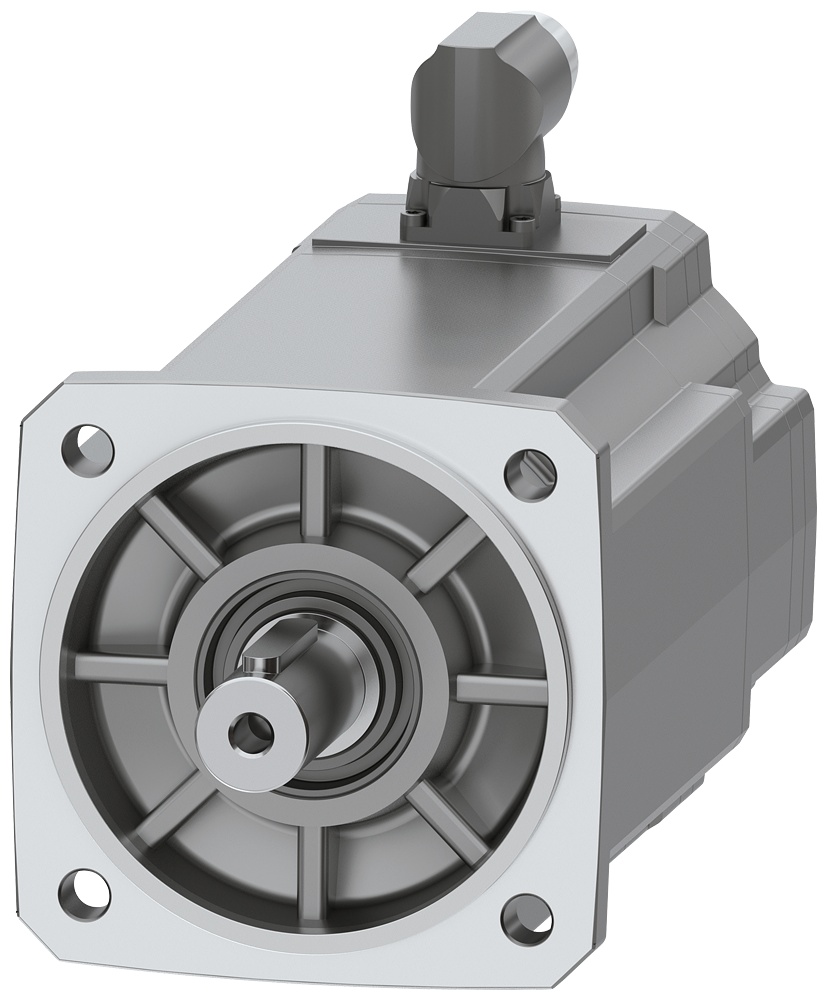

Image provided may only be a representation of final product and may include optional equipment
