ABB TEY3100 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TEY3100 |
| SKU #: | 2466154 |
| Frame: | TEY |
| UNSPSC: | 39121601 |
| UPC: | 00783164182279 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

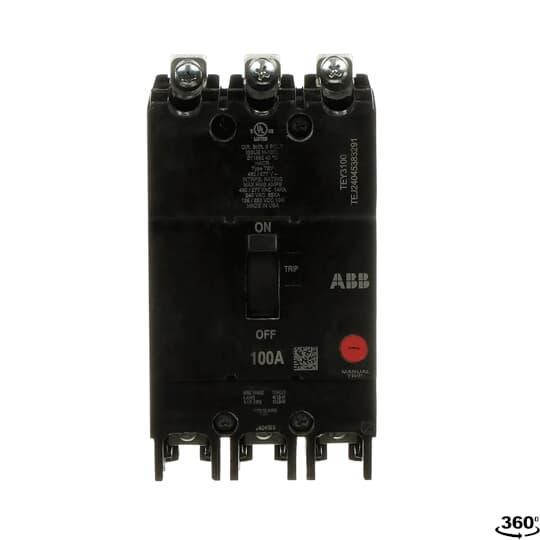

ABB TEY3100
Brand: ABB
Part Number: TEY3100
Additional Description: ABB -TEY3100 TEY 3 POLE 100 AMP
Catalog Description: The TEY is a one-inch wide per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 Vac systems. The bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. All TEY circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. TEY breakers are available in 1, 2, and 3 pole versions and can be ordered with auxiliary contact and shunt trip accessories. TEY 3 POLE 100 AMP
TEY3100 Application
Industrial, Electrical Distribution and Control ApplicationsTEY3100 Includes
Integral Copper/Aluminum Load LugTEY3100 Item Features
- Standard continuous current rated
- EY GO schedule
- Suitable for reverse feed
- HACR, high intensity discharge (HID) rated special marking
- 65 kA at 120/240 VAC, 14 kA at 277 VAC interrupt rating
TEY3100 Standards
UL File No. E11592|CSA File No. LR57114|GSA Compliant|HACR RatedSKU #2466154Part Number #TEY3100UNSPSC39121601UPC00783164182279
Image provided may only be a representation of final product and may include optional equipment
