3LD3154-0TK51
Siemens 3LD3154-0TK51
Part Number # 3LD3154-0TK51
SKU # 2466547
$124.20 / Each
Typical price:$162.50 / Each
Siemens 3LD3154-0TK51 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3LD3154-0TK51 |
| SKU #: | 2466547 |
| Actuator Type: | Rotary Operating Handle/Short Rotary Knob/Toggle |
| Amperage Rating: | 25 A |
| Dimensions: | 36 mm W x 114 mm D x 60 mm H |
| Enclosure Type: | NEMA 1/3R/4X/12/IP65 |
| Frequency Rating: | 50/60 Hz |
| Horsepower: | 10/15 hp |
| Number of Poles: | 3 |
| Series: | 3LD3 |
| Short Circuit Current Rating (kA): | 5/6 kA |
| Temperature Rating (Degrees F): | -25 to 55 deg C |
| Terminal Type: | Box |
| Country of origin: | DE |
| Mounting type: | Front Plate/Fixed |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122233 |
| UPC: | 00195125097377 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$124.20 / Each
Typical price:$162.50 / Each
Quantity:
- Siemens Load Switch Disconnector, Series: 3LD3, 600 V AC, 25 A, 10/15 hp, 50/60 Hz Frequency, 3 Pole, 5/6 kA Short Circuit, Rotary Operating Handle/Short Rotary Knob/Toggle Actuator, NEMA 1/3R/4X/12/IP65 Enclosure, Front Plate/Fixed Mounting, Box Terminal, -25 to 55 deg C, 36 mm W x 114 mm D x 60 mm H, Black
3LD3154-0TK51 Application
For switching machines, switching 3 ph motors and other loads during maintenance and repair work, main switch, safety switch3LD3154-0TK51 Includes
Terminal Covers for the Infeed Side3LD3154-0TK51 Item Features
- Basic switch with 22.5 mm central hole mounting
- 66 x 66 mm black toggle drive
- Without auxiliary switch
- 10 hp at 480 VAC/15 hp at 600 VAC
- 5 kA short time withstand current/6 kA conditional short circuit current
3LD3154-0TK51 Standards
CCC Certified|CE Certified|EAC Certified|ECCN Approved|IEC 60947-1/60947-3|REACH Article 33|RoHS 2011/65/EU and 2015/863/EU|UL 508/60947-4-1|WEEE 2012/19/EUSKU #2466547Part Number #3LD3154-0TK51UNSPSC39122233UPC00195125097377

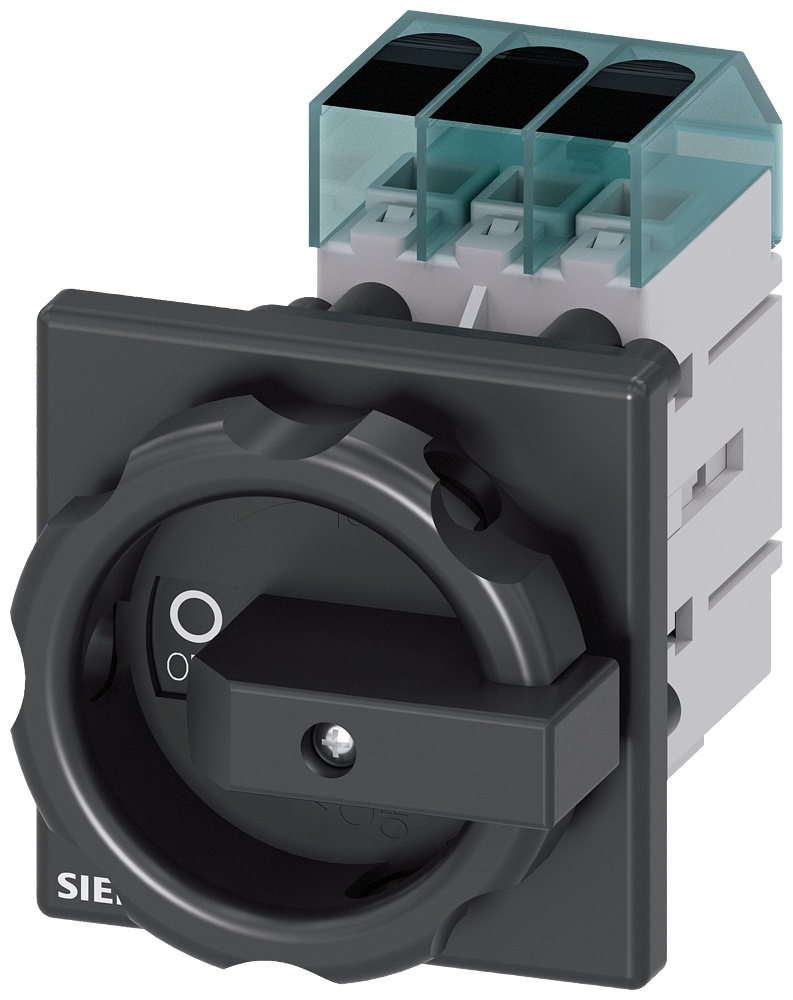

Image provided may only be a representation of final product and may include optional equipment
