Part Number # 9T58K2878
SKU # 2466556
9T58K2878
ABB 9T58K2878
Part Number # 9T58K2878
SKU # 2466556
ABB 9T58K2878 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K2878 |
| SKU #: | 2466556 |
| Dimensions: | 3.81 in W x 3.28 in H |
| Frequency Rating: | 60 Hz |
| Insulation: | IS-12 |
| Phase: | 1 |
| Primary Voltage: | 120/240 V AC |
| Secondary Voltage: | 12/24 V AC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Dry Fully Encapsulated Open Core and Coil |
| Circuit type: | 8200 Frame |
| Connection type: | Pressure Plate |
| Housing material: | Plastic |
| Mounting type: | Panel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173123638 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

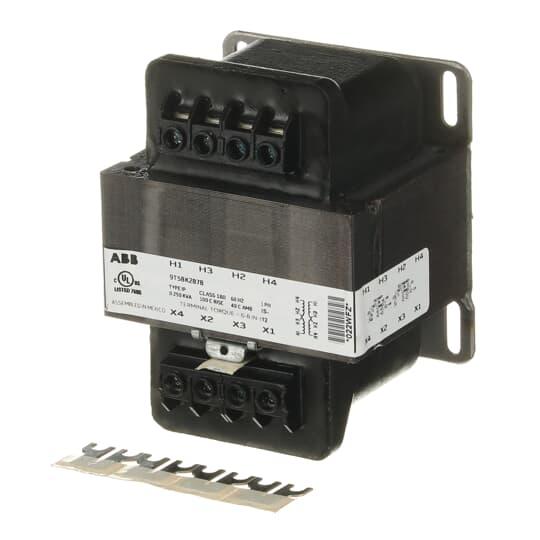

ABB 9T58K2878
Brand: ABB
Part Number: 9T58K2878
Additional Description: ABB -9T58K2878 (N) 1C,0.25KVA,120X240-12/24,80C,C&C,TB ,IP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: ABB's General purpose encapsulated open core, and coil transformer (also known as Type IP Control Power transformers) are ideally suited for industrial and light-duty loads, HVAC applications, signal and alarm systems, industrial control panels, lighting, and circuit isolation. The optional fuse block adapter kits enable input and output flexibility. Type IP Control Power transformers are an economical alternative to high in-rush/machine tool transformers.
9T58K2878 Application
Machine Tool Applications9T58K2878 Item Features
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Terminal board is anchored in the epoxy for greater reliability
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Copper windings
- Pressure plate terminals ensure secure connections
- 100 deg C temperature rise
- K1-factor rated transformer
- Standard sound
9T58K2878 Standards
CE Marking|cUL Listed|GSA Compliant|UL ListedSKU #2466556Part Number #9T58K2878UNSPSC39121026UPC00783173123638
Image provided may only be a representation of final product and may include optional equipment
