Square D (Schneider Electric) BRS3ACW850ABA
Part Number # BRS3ACW850ABA
SKU # 2466834
BRS3ACW850ABA
Square D (Schneider Electric) BRS3ACW850ABA
Part Number # BRS3ACW850ABA
SKU # 2466834
$1209.07 / Each
Typical price:$1302.08 / Each
Square D (Schneider Electric) BRS3ACW850ABA Key Features
| Brand: | Square D (Schneider Electric) |
|---|---|
| Part Number # : | BRS3ACW850ABA |
| SKU #: | 2466834 |
| Amperage Rating: | 4.1 A |
| Application Type: | Lexium SD3 Motion Control |
| Dimensions: | 180 mm L |
| Enclosure Type: | IP41/IP56 |
| Frequency Rating: | 4.7 kHz |
| Series: | BRS3A |
| Shaft Size: | 19 mm Dia x 40 in L |
| Speed: | 3000 rpm |
| Temperature Rating (Degrees F): | -25 to 40 deg C |
| Torque Rating: | 12 N-m |
| Type: | 6-Pole Motion Control |
| Insulation class: | F |
| Mounting type: | Flange |
| UNSPSC: | 26101202 |
| UPC: | 03389119224147 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1209.07 / Each
Typical price:$1302.08 / Each
Quantity:

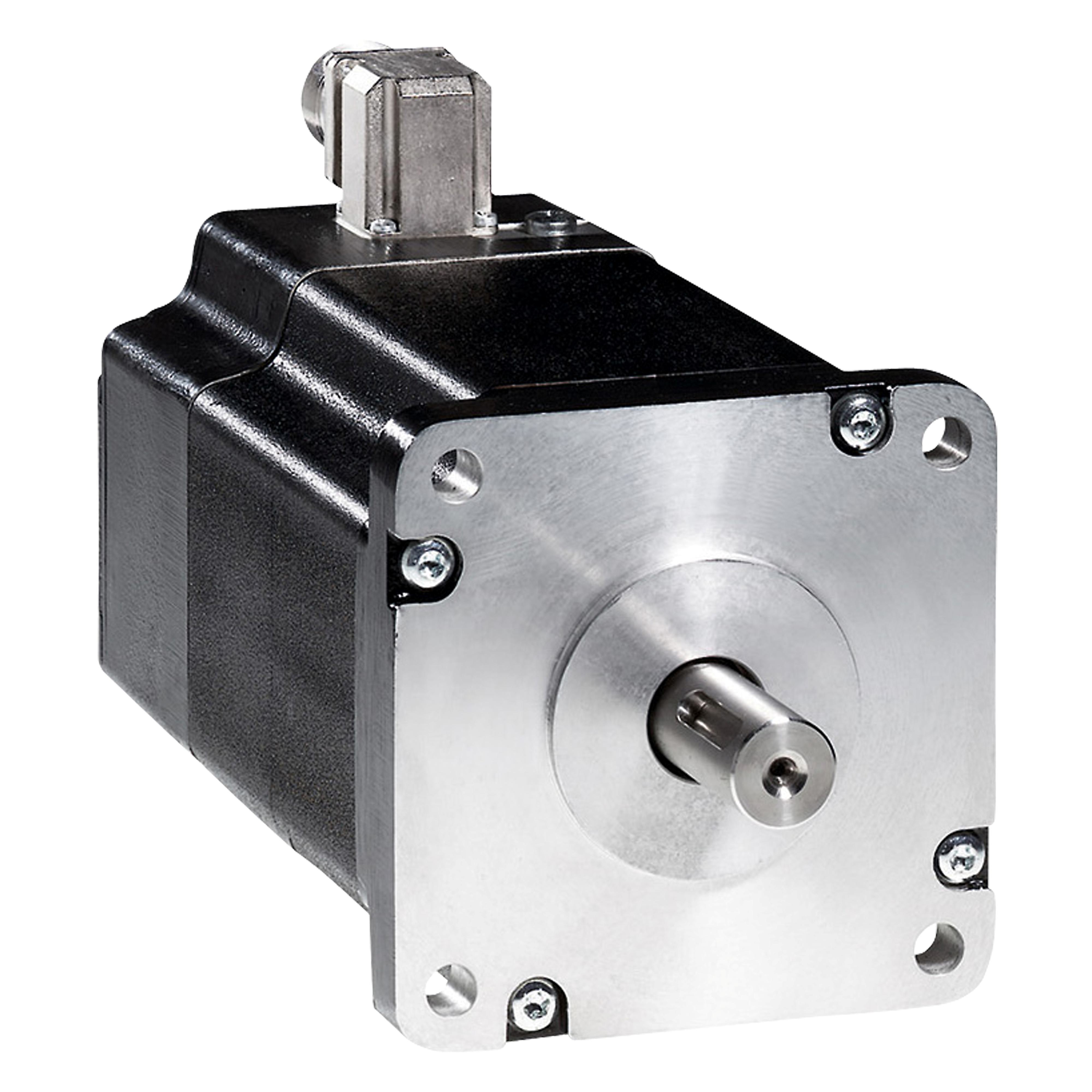

- Schneider Electric Lexium SD3 AC Stepper Motor, 6-Pole Motion Control, Series: BRS3A, Lexium SD3 Motion Control Application, 230 V AC/325 V DC, 4.1 A, 4.7 kHz Frequency, 3 ph, 3000 rpm Speed, IP41/IP56 Enclosure, 19 mm Dia x 40 in L Shaft, Roller Bearing, 12 N-m Torque, Flange Mounting, -25 to 40 deg C, Insulation Class: F, 180 mm L Dimensions
BRS3ACW850ABA Item Features
- Extremely compact
- High flexibility
- Integrated safety
- Plug and play for easy automation
- Natural convection cooling
BRS3ACW850ABA Standards
Green Premium|REACH Compliant|WEEE Compliance|EN 50347|IEC 60072-1|EN/IEC 60034-5|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen Reproductive harm For more information go to www.p65warnings.ca.gov|RoHS CompliantSKU #2466834Part Number #BRS3ACW850ABAUNSPSC26101202UPC03389119224147
Image provided may only be a representation of final product and may include optional equipment
