THQC1115WL
ABB THQC1115WL
Part Number # THQC1115WL
SKU # 2467865
$68.09 / Each
Typical price:$91.24 / Each
ABB THQC1115WL Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | THQC1115WL |
| SKU #: | 2467865 |
| Actuator Type: | Pivot/Toggle Handle |
| Dimensions: | 3-9/32 in H x 1 in W x 2-3/8 in D |
| Temperature Rating (Degrees F): | 10 to 50 deg C |
| Type: | Type THQC Compact |
| UNSPSC: | 39121601 |
| UPC: | 00783164012484 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$68.09 / Each
Typical price:$91.24 / Each
Quantity:

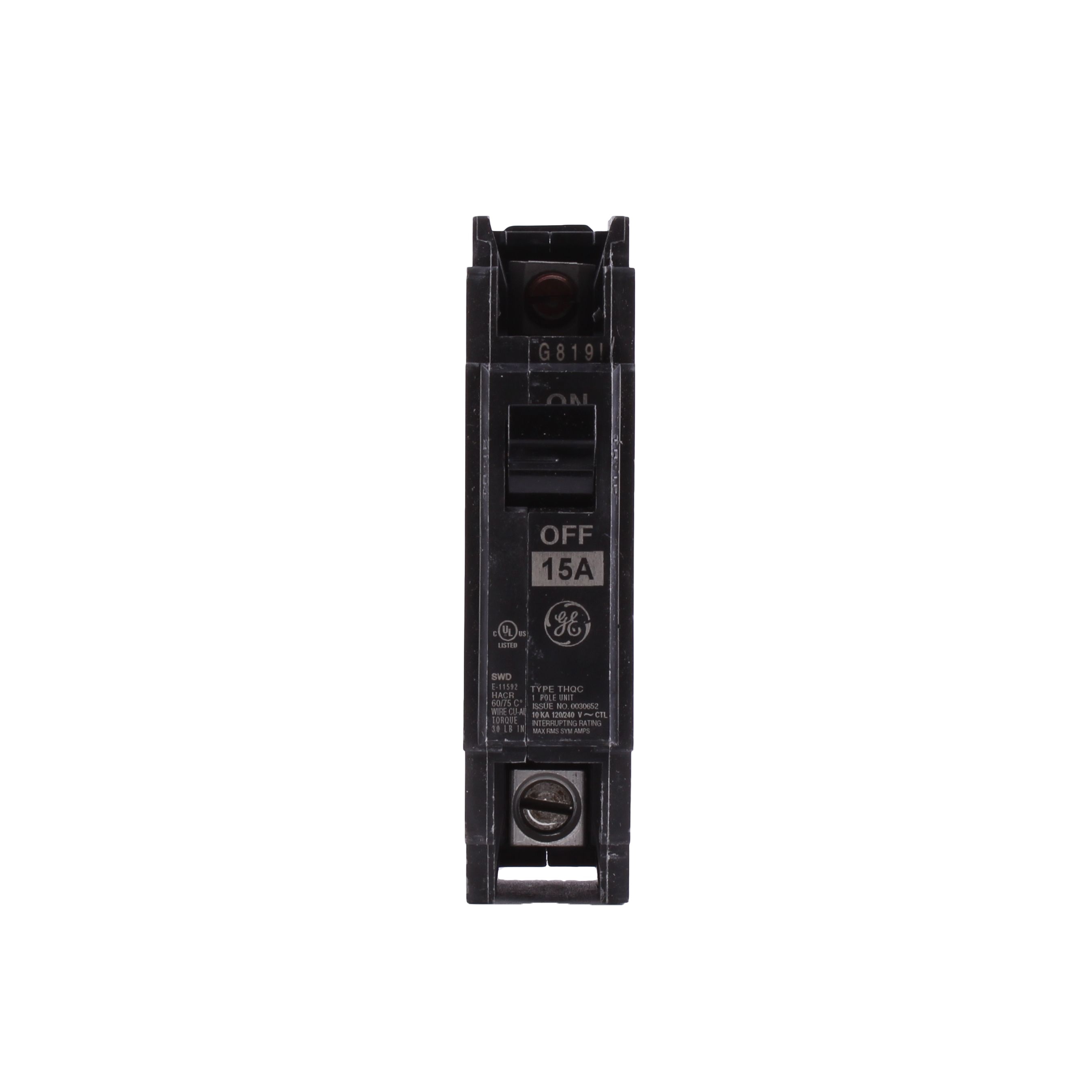

- GE Q-Line Molded Case Circuit Breaker, Type THQC Compact, 120/240 V AC, 15 A, 50/60 Hz Frequency, 10 kA Interrupt, Q-Line Frame, Thermal Magnetic Trip, 1 Pole, 1 ph, Pivot/Toggle Handle Actuator, Line/Load Lug Connection, 14 to 8 AWG, 12 to 8 AWG Wire, Plug-In Mounting, 10 to 50 deg C, 3-9/32 in H x 1 in W x 2-3/8 in D Dimensions, Plastic
THQC1115WL Application
Residential, Commercial, Electrical Distribution and Control ApplicationsTHQC1115WL Includes
LugTHQC1115WL Item Features
- Molded case is molded from high mechanical and high dielectric strength engineered plastic
- Trip indication is shown by handle position midway between ON and off to reset the trip mechanism, move the handle to extreme off then to ON position
- Quick-make, quick-break, trip-free mechanism minimizes arcing during breaker operation, contacts cannot be teased into position
- Trip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in on position
- VERIFIER "twist-to-trip" and push-to-trip mechanically simulates over current tripping through actuation of linkages not operated by the on-off handle
- Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
- Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
- Arc chutes of heat absorbing, insulating material and metal grid plates quickly extinguish arcs
- UL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight in wiring
- 10 kA at 120 VAC, 10 kA at 120/240 VAC interrupt rating
THQC1115WL Standards
E11592SKU #2467865Part Number #THQC1115WLUNSPSC39121601UPC00783164012484
Image provided may only be a representation of final product and may include optional equipment
