1FT70865AF741MB2
Siemens 1FT70865AF741MB2
Part Number # 1FT70865AF741MB2
SKU # 2468651
$8802.09 / Each
Typical price:$11848.97 / Each
Siemens 1FT70865AF741MB2 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 1FT70865AF741MB2 |
| SKU #: | 2468651 |
| Amperage Rating: | 11 A |
| Dimensions: | 6.1 in W |
| Enclosure Type: | IP67 |
| Horsepower: | 7.58 hp |
| Series: | 1FT7 |
| Shaft Size: | 1.26 in Dia x 2.28 in L |
| Speed: | 3000 rpm |
| Temperature Rating (Degrees F): | 104 deg F |
| Torque Rating: | 18 N-m |
| Type: | Compact Natural Cooling |
| Country of origin: | DE |
| Insulation class: | Class F |
| Mounting type: | Flange |
| Manufacturer Name: | Siemens |
| UNSPSC: | 26101109 |
| UPC: | 00804766969836 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8802.09 / Each
Typical price:$11848.97 / Each
Quantity:

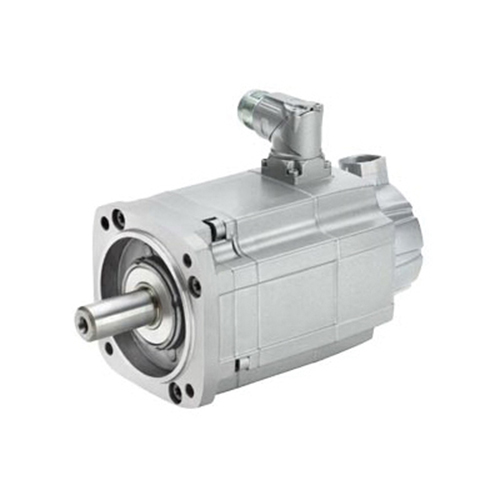

- Siemens SIMOTICS S Servomotor, Compact Natural Cooling, Series: 1FT7, 7.58 hp, 600 to 720 V DC, 11 A, 3000 rpm, IP67 Enclosure, 1.26 in Dia x 2.28 in L Shaft, 18 N-m, Flange Mount, 104 deg F, Insulation Class: Class F, 6.1 in W
1FT70865AF741MB2 Application
Packaging Machines, Plastics and Textile Machines, Printing Machines, Wood, Glass, Ceramics and Stone Working, Robots, Handling Systems and Conveyor Technology, Feed and Auxiliary Axes for Machine Tools1FT70865AF741MB2 Includes
PT1000 Temperature Sensor in Stator Winding and AM2048S/R 4096 Revolutions Multi-Turn Absolute Encoder System with EnDat Interface, M23 Signal Connection1FT70865AF741MB2 Item Features
- High surface quality on the workpiece due to high concentricity and low torque ripple
- Easy to service and install thanks to cross profile, rotatable connector with quick-release fastener and exchangeable encoder
- Digital DRIVE-CLiQ interface with electronic rating plate for optimum connection to SINAMICS S120
- High degree of efficiency and fourfold overload capability (for natural cooling)
- Extremely rugged due to IP67 degree of protection and vibration-isolated encoder mounting
- Without DRIVE-CLiQ interface
1FT70865AF741MB2 Standards
CCC Certified|cURus Listed|CE Certified|cUL Listed|EAC Compliant|EN/IEC 60034-1/60034-5/60034-6/60034-7/EN 60034-11/60034-14|DIN 748-3/IEC 60072-1|DIN 42955/IEC 60072-1|UL ListedSKU #2468651Part Number #1FT70865AF741MB2UNSPSC26101109UPC00804766969836
Image provided may only be a representation of final product and may include optional equipment
