Part Number # 3SB3500-1HA20
SKU # 328876
Image Disclaimers Message
3SB3500-1HA20

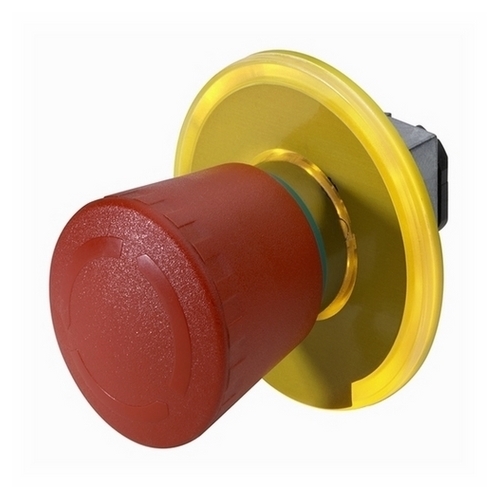

Siemens 3SB3500-1HA20
Part Number # 3SB3500-1HA20
SKU # 328876
$34.29 / Each
Typical price:$64.00 / Each
Siemens 3SB3500-1HA20 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3SB3500-1HA20 |
| SKU #: | 328876 |
| Bezel/Housing: | Zinc |
| Enclosure Type: | NEMA 1/3/4/4X/12/IP67 |
| Number of Positions: | 2 |
| Operator Type: | Round Mushroom Button |
| Series: | 3SB |
| Size: | 22, 22 mm |
| Temperature Rating (Degrees F): | -25 to 70, -25 to 70 deg C |
| Terminal Type: | Threaded |
| Color: | Red |
| Country of origin: | DE |
| Material: | Metal |
| Mounting type: | Surface |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122216 |
| UPC: | 00754554824918 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$34.29 / Each
Typical price:$64.00 / Each
Quantity:
- Siemens Non-Illuminated Pushbutton Operator, Series: 3SB, 22 mm Size, Maintained Contact Mode, 2 Positions, Round Mushroom Button Operator, NEMA 1/3/4/4X/12/IP67 Enclosure, Threaded Terminal, Surface Mounting, Bezel/Housing: Zinc, -25 to 70 deg C, Metal, Red
3SB3500-1HA20 Specifications
- The devices are climateproof
- Nickel plated, brass/zinc die cast bezel
- Die cast zinc bezel
- Modular design, high degree of protection, communications capable, easy and quick installation and customization
- 22 mm Dia x 49 mm H mounting
- 40.5 mm W x 29 mm D installation
- 300000 operating cycles
- Emergency stop pushbutton
- Positive latching
- Rotate to unlatch mechanism
- Metal holder material
3SB3500-1HA20 Application
For standard industrial and marine applications3SB3500-1HA20 Item Features
- The devices are climateproof
- Modular design, high degree of protection, communications capable, easy and quick installation and customization
- 22 mm Dia x 49 mm H mounting
- 40.5 mm W x 29 mm D installation
- 300000 operating cycles
- Emergency stop pushbutton
- Positive latching
- Rotate to unlatch mechanism
- Metal holder material
- Nickel plated, brass/zinc die cast bezel
- Die cast zinc bezel
3SB3500-1HA20 Standards
CE Certified|CSA Certified|EAC Certified|VDE Certified|UL File No. E44653 (Vol 11 Sec 4)|IEC/EN StandardSKU #328876Part Number #3SB3500-1HA20UNSPSC39122216UPC00754554824918
