Part Number # 9T51B0013
SKU # 2404974
9T51B0013
ABB 9T51B0013 General Purpose Transformer
Part Number # 9T51B0013
SKU # 2404974
$1454.01 / Each
ABB 9T51B0013 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T51B0013 |
| SKU #: | 2404974 |
| Dimensions: | 11.12 in H x 9.38 in W x 6.7 in D |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 60 Hz |
| Insulation: | IS-12 |
| Phase: | 1 |
| Primary Voltage: | 240/480 V AC, 240/480 VAC |
| Secondary Voltage: | 120/240 V AC, 120/240 VAC |
| Series: | 9T51B |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Type QB Dry Encapsulated |
| Circuit type: | 14350 Frame |
| Connection type: | Lug/Bolt Down |
| Housing material: | Silicon Steel |
| Mounting type: | Wall |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121027 |
| UPC: | 00783173008348 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1454.01 / Each
Quantity:
ABB 9T51B0013 General Purpose Transformer
Brand: ABB
Part Number: 9T51B0013
Additional Description: ABB -9T51B0013 1C,3KVA,240X480-120/240,100C,3R,60H Z,QB z,QB
Catalog Description: ABB's QB single phase transformers feature encapsulated core and coils in a NEMA 3R nonventilated weatherproof enclosure. Knock outs provided on back and bottom. Mounting holes on side for easy access. Wiring compartment includes ground stud.
9T51B0013 Application
Electrical Distribution, Control and Indoor/Outdoor Applications9T51B0013 Includes
Ground Stud9T51B0013 Item Features
- Core and coils are contained within a NEMA 3R non-ventilated weatherproof enclosure
- Type QB and QMS units feature encapsulated core and coils
- No taps
- K1 factor rated transformer
- Knockouts provided on back and bottom
- High grade silicon steel core
- Mounting holes on side for easy access
- These GE transformers feature an encapsulated core and coil in a NEMA 3R non-ventilated weatherproof enclosure
- Wiring compartment includes ground stud
9T51B0013 Standards
UL Listed|cUL ListedSKU #2404974Part Number #9T51B0013UNSPSC39121027UPC00783173008348

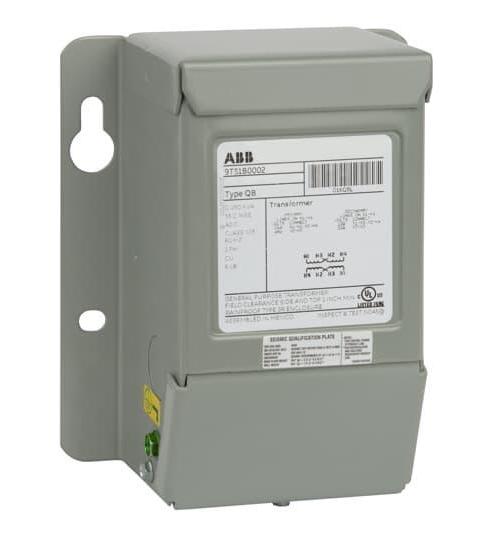

Image provided may only be a representation of final product and may include optional equipment
