Part Number # 9T58E0155
SKU # 2437191
9T58E0155
ABB 9T58E0155 Ge Core And Coil Transformer
Part Number # 9T58E0155
SKU # 2437191
ABB 9T58E0155 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58E0155 |
| SKU #: | 2437191 |
| Dimensions: | 3.3 in H x 3.8 in W x 5.1 in D |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 50 Hz |
| Insulation: | IS-12 |
| Phase: | 1 |
| Primary Voltage: | 230/400 V AC, 230/400 VAC |
| Secondary Voltage: | 115/230 V AC, 115/230 VAC |
| Series: | 9T |
| Temperature Rating (Degrees F): | 55 deg C |
| Type: | Type QB Dry Encapsulated |
| Connection type: | Pressure Plate/Terminal Board |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173155523 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58E0155 Ge Core And Coil Transformer
Brand: ABB
Part Number: 9T58E0155
Additional Description: ABB -9T58E0155 (N) 1C,0.15KVA,230/400-115/230,55C,C&C, CE,IP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: ABB's CE marked 9T58E control power isolating transformers feature a welded core, encapsulated coils to deliver reliable performance while keeping vibration and noise low. The IP 20 terminal blocks are a standard safety feature ideal for any 50 or 60 Hz applications. These transformers are available with various input and output voltages and kVA ratings. The CE marked 9T58E control power isolating transformers meet domestic and international standards.
9T58E0155 Application
Machine Tool, Electrical Distribution and Control Applications9T58E0155 Item Features
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Copper windings
- Flexible design allows input or output voltage to match any application
9T58E0155 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|cUL Listed|CE Certified|UL 5085, File No. E2739|CSA C22.2 No. 66, File No. 3272SKU #2437191Part Number #9T58E0155UNSPSC39121026UPC00783173155523

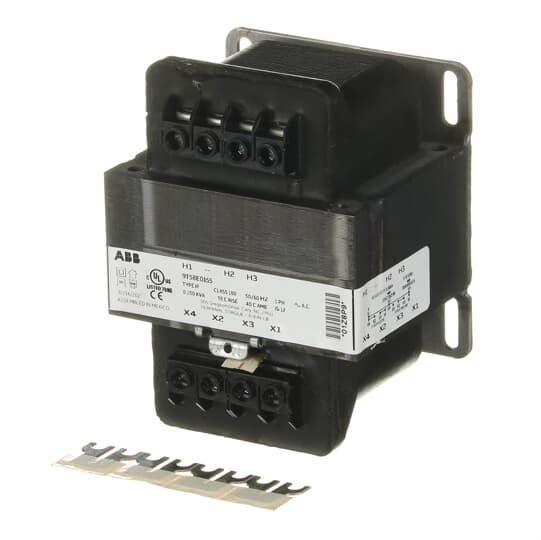

Image provided may only be a representation of final product and may include optional equipment
