Part Number # 9T58K0043
SKU # 2418973
9T58K0043
ABB 9T58K0043 Power Transformer
Part Number # 9T58K0043
SKU # 2418973
ABB 9T58K0043 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K0043 |
| SKU #: | 2418973 |
| Dimensions: | 3.06 in W x 2.68 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 60 Hz |
| Insulation: | Class A |
| Phase: | 1, 1 ph |
| Primary Voltage: | 240/480 V AC, 240/480 VAC |
| Secondary Voltage: | 120 V AC, 120 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Core/Coil Dry Fully Encapsulated |
| Circuit type: | 6125 Frame |
| Connection type: | Pressure Plate |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173119129 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58K0043 Power Transformer
Brand: ABB
Part Number: 9T58K0043
Additional Description: ABB -9T58K0043 1C,0.075KVA,240X480-120,55C,C&C,TB, IP
Catalog Description: ABB's Machine tool core and coil transformers are isolation transformers designed to provide a high degree of secondary voltage stability (regulation) during a brief period of overload condition (also referred to as “inrush current”). They are ideal for applications where power regulation and space optimization are critical. Machine tool core and coil transformers feature welded cores to deliver outstanding performance, long life, and quiet operation.
9T58K0043 Application
Machine Tool, Electrical Distribution and Control Applications9T58K0043 Item Features
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Terminal board is anchored in the epoxy for greater reliability
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Copper windings
- Pressure plate terminals ensure secure connections
- 105 deg C temperature class
- Copper coil
- Fingersafe terminals offer added protection and safety
9T58K0043 Standards
CE Marking|CSA 3272|cUL 5085|UL Listed File No. E2739SKU #2418973Part Number #9T58K0043UNSPSC39121026UPC00783173119129

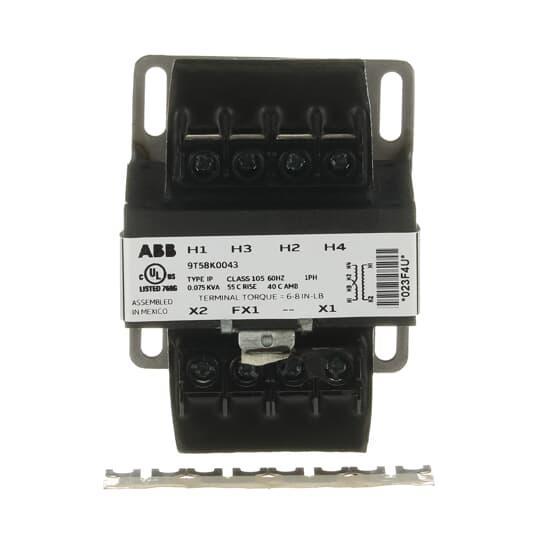

Image provided may only be a representation of final product and may include optional equipment
