9T58K0044

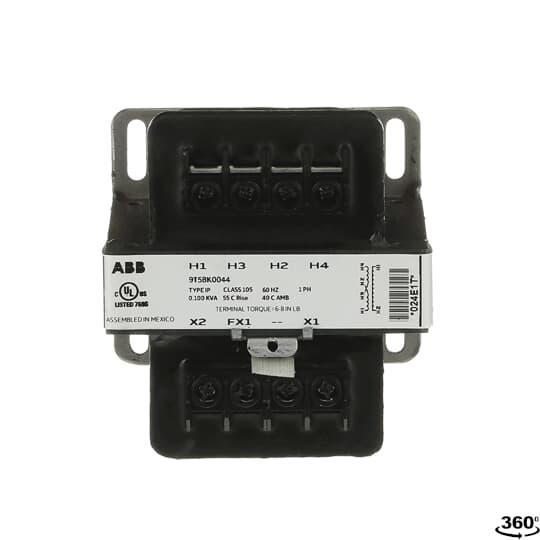

ABB 9T58K0044 Control Transformer
Part Number # 9T58K0044
SKU # 2418971
$101.76 / Each
ABB 9T58K0044 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K0044 |
| SKU #: | 2418971 |
| Dimensions: | 3.28 in H x 3.81 in W x 4.1 in D |
| Enclosure Type: | Open |
| Frequency Rating: | 60 Hz |
| Insulation: | Class A |
| Phase: | 1 |
| Primary Voltage: | 240/480 V AC, 240/480 VAC |
| Secondary Voltage: | 115 V AC, 115 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 105 deg C |
| Type: | Type IP Core/Coil Dry Fully Encapsulated Harmonic Mitigation |
| Circuit type: | 8100 Frame |
| Connection type: | Pressure Plate/Terminal Board |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173145265 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$101.76 / Each
Quantity:
- GE Control Transformer, Type IP Core/Coil Dry Fully Encapsulated Harmonic Mitigation, Series: 9T58K, 240/480 V AC Primary, 115 VAC Secondary, 0.1 kVA Power, 60 Hz Frequency, 1 ph, Pressure Plate/Terminal Board Connection, 8100 Frame Circuit, Class A Insulation, Open Enclosure, 105 deg C, 3.28 in H x 3.81 in W x 4.1 in D Dimensions
9T58K0044 Application
Machine Tool, Electrical Distribution and Control Applications9T58K0044 Item Features
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Finger safe terminals offer added protection and safety
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Copper windings
- Available fuse clips offer simple, low cost fusing with terminal block models and minimum space are important
- Used to provide voltage to control devices in applications where regulation and minimum space are important
- 40 deg C ambient temperature, 55 deg C temperature rise
- K1 factor rated transformer
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
9T58K0044 Standards
UL 5085|UL File No. E2739|CSA C22.2 No.6 Class 3272|NEMA ST20|CE CertifiedSKU #2418971Part Number #9T58K0044UNSPSC39121026UPC00783173145265
