9T58K0050

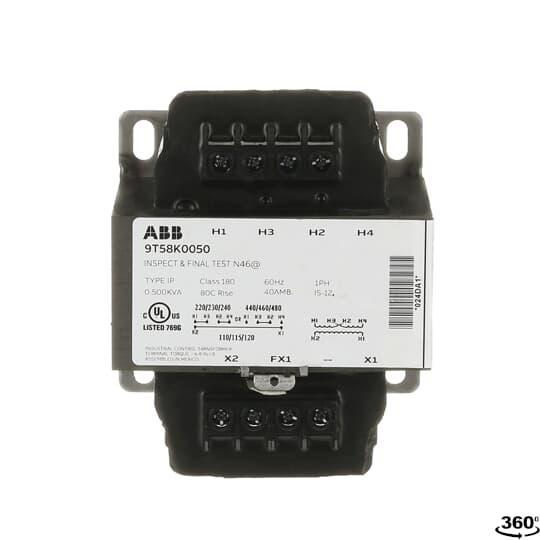

ABB 9T58K0050 Power Transformer
Part Number # 9T58K0050
SKU # 2418961
$243.60 / Each
ABB 9T58K0050 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K0050 |
| SKU #: | 2418961 |
| Dimensions: | 4.56 in W x 3.9 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 60 Hz |
| Insulation: | IS-12 |
| Phase: | 1, 1 ph |
| Primary Voltage: | 240/480 V AC, 240/480 VAC |
| Secondary Voltage: | 115 V AC, 115 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Core/Coil Dry Fully Encapsulated Harmonic Mitigation |
| Circuit type: | 10225 Frame |
| Connection type: | Pressure Plate |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173110201 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$243.60 / Each
Quantity:
- GE Power Transformer, Core/Coil Dry Fully Encapsulated Harmonic Mitigation, Series: 9T58K, 240/480 V AC Primary, 115 VAC Secondary, 0.5 kVA, 60 Hz, 1 ph, Pressure Plate, 10225 Frame, IS-12, Open, 40 deg C, 4.56 in W x 3.9 in H
9T58K0050 Application
Machine Tool, Electrical Distribution and Control Applications9T58K0050 Item Features
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Terminal board is anchored in the epoxy for greater reliability
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Copper windings
- Pressure plate terminals ensure secure connections
- 80 deg C temperature rise
- K1-factor rated transformer
- Terminal board connection
- 180 deg C temperature class
- Fingersafe terminals offer added protection and safety
9T58K0050 Standards
CE Marking|CSA 3272|cUL 5085|GSA Compliant|UL Listed File No. E2739SKU #2418961Part Number #9T58K0050UNSPSC39121026UPC00783173110201
