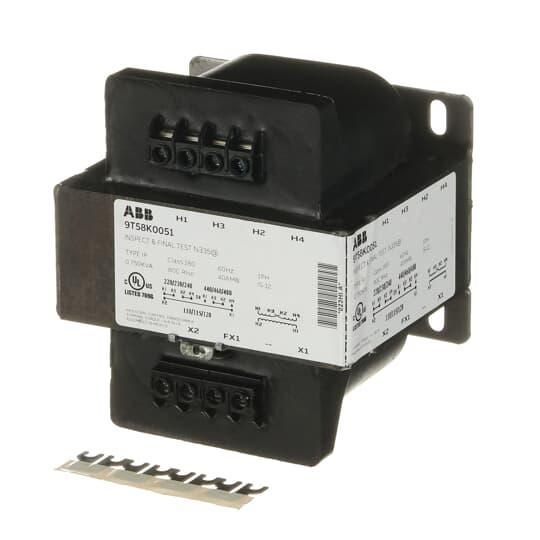

ABB 9T58K0051 Power Transformer
Part Number # 9T58K0051
SKU # 2390205
ABB 9T58K0051 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K0051 |
| SKU #: | 2390205 |
| Dimensions: | 5.31 in W x 4.56 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 60 Hz |
| Insulation: | IS-12 |
| Phase: | 1, 1 ph |
| Primary Voltage: | 240/480 V AC, 240/480 VAC |
| Secondary Voltage: | 115 V AC, 115 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Core/Coil Dry Fully Encapsulated |
| Circuit type: | 12225 Frame |
| Connection type: | Pressure Plate |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173151099 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58K0051 Power Transformer
Brand: ABB
Part Number: 9T58K0051
GE Power Transformer, Core/Coil Dry Fully Encapsulated, Series: 9T58K, 240/480 VAC Primary, 115 VAC Secondary, 0.75 kVA, 60 Hz, 1 ph, Pressure Plate, 12225 Frame, IS-12, Open, 40 deg C, 5.31 in W x 4.56 in H
Additional Description: ABB -9T58K0051 1C,0.75KVA,240X480-120,80C,C&C,TB,I P
Catalog Description: ABB's Machine tool core and coil transformers are isolation transformers designed to provide a high degree of secondary voltage stability (regulation) during a brief period of overload condition (also referred to as “inrush current”). They are ideal for applications where power regulation and space optimization are critical. Machine tool core and coil transformers feature welded cores to deliver outstanding performance, long life, and quiet operation.
9T58K0051 Application
Machine Tool, Electrical Distribution and Control Applications9T58K0051 Item Features
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Terminal board is anchored in the epoxy for greater reliability
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Copper windings
- Pressure plate terminals ensure secure connections
- 180 deg C temperature class
- Copper coil
- Fingersafe terminals offer added protection and safety
9T58K0051 Standards
CE Marking|CSA 3272|cUL 5085|UL Listed File No. E2739SKU #2390205Part Number #9T58K0051UNSPSC39121026UPC00783173151099
