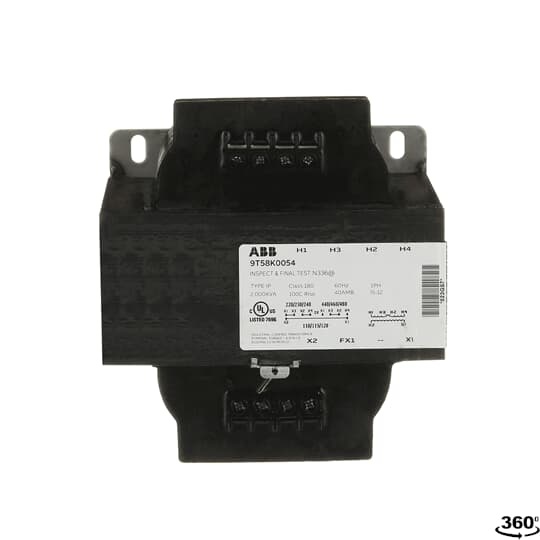

ABB 9T58K0054 Power Control Transformer
Part Number # 9T58K0054
SKU # 2418978
$735.82 / Each
ABB 9T58K0054 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K0054 |
| SKU #: | 2418978 |
| Dimensions: | 6.81 in W x 5.81 in H |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 60 Hz |
| Insulation: | IS-12 |
| Phase: | 1, 1 ph |
| Primary Voltage: | 240/480 V AC, 240/480 VAC |
| Secondary Voltage: | 120 V AC, 120 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Fully Encapsulated |
| Circuit type: | 14300 Frame |
| Connection type: | Pressure Plate |
| Housing material: | Plastic |
| Mounting type: | Panel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173151129 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$735.82 / Each
Quantity:
- GE Power Control Transformer, Fully Encapsulated, Series: 9T58K, 240/480 V AC Primary, 120 VAC Secondary, 2 kVA, 60 Hz, 1 ph, Pressure Plate, 14300 Frame, Panel Mount, IS-12, NEMA 1, 40 deg C, Plastic Housing, 6.81 in W x 5.81 in H
9T58K0054 Application
Machine Tool, Industrial Control, Panelboard and General Purpose Applications9T58K0054 Item Features
- Copper windings
- Electro statically unshielded
- Transformers are built to standard sound level
- 14300 frame
- 100 deg C temperature rise
- K1-factor rated transformer
- IS-12 insulation system
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminal ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Type IP and open core and coil power control transformer
- 180 deg C insulation temperature, terminal board type
9T58K0054 Standards
CE Certified|cUL Listed|GSA Compliant|UL 506 File No. E2739SKU #2418978Part Number #9T58K0054UNSPSC39121026UPC00783173151129
