ABB 9T58K0055 Control Transformer
Part Number # 9T58K0055
SKU # 2418980
ABB 9T58K0055 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K0055 |
| SKU #: | 2418980 |
| Dimensions: | 5.81 in H x 6.81 in W x 8.8 in D |
| Enclosure Type: | Open |
| Frequency Rating: | 60 Hz |
| Insulation: | IS-12 |
| Phase: | 1 |
| Primary Voltage: | 240/480 V AC, 240/480 VAC |
| Secondary Voltage: | 115 V AC, 115 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 180 deg C |
| Type: | Type IP Core/Coil Dry Fully Encapsulated |
| Circuit type: | 14475 Frame |
| Connection type: | Pressure Plate |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173151136 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58K0055 Control Transformer
Brand: ABB
Part Number: 9T58K0055
Additional Description: ABB -9T58K0055 1C,3KVA,240X480-120,115C,C&C,TB,IP
Catalog Description: ABB's Machine tool core and coil transformers are isolation transformers designed to provide a high degree of secondary voltage stability (regulation) during a brief period of overload condition (also referred to as “inrush current”). They are ideal for applications where power regulation and space optimization are critical. Machine tool core and coil transformers feature welded cores to deliver outstanding performance, long life, and quiet operation.
9T58K0055 Application
Machine Tool, Electrical Distribution and Control Applications9T58K0055 Item Features
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Finger safe terminals offer added protection and safety
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Copper windings
- Available fuse clips offer simple, low cost fusing with terminal block models and minimum space are important
- Used to provide voltage to control devices in applications where regulation and minimum space are important
- 40 deg C ambient temperature, 115 deg C temperature rise
- K1 factor rated transformer
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
9T58K0055 Standards
UL 5085|UL File No. E2739|CSA C22.2 No.6 Class 3272|NEMA ST20|CE CertifiedSKU #2418980Part Number #9T58K0055UNSPSC39121026UPC00783173151136

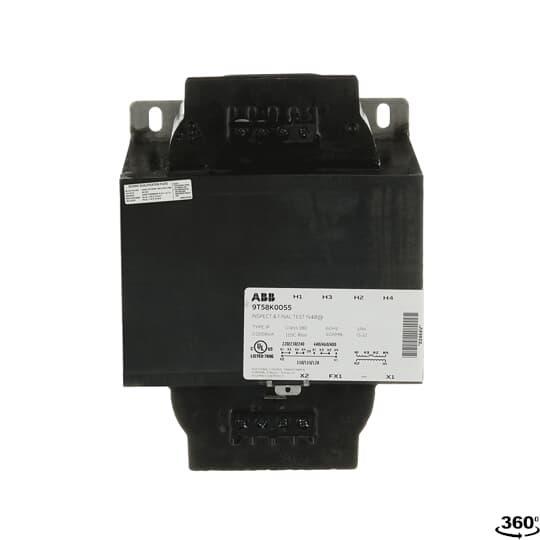

Image provided may only be a representation of final product and may include optional equipment
