Part Number # 9T58K0062
SKU # 2437194
Image Disclaimers Message
9T58K0062

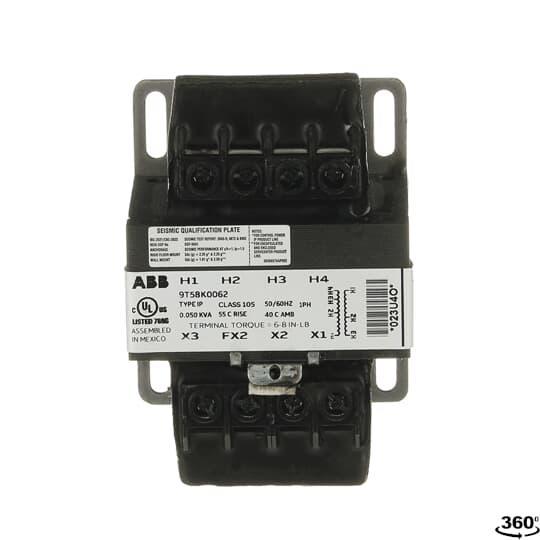

ABB 9T58K0062 Ge Power Transformer
Part Number # 9T58K0062
SKU # 2437194
ABB 9T58K0062 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K0062 |
| SKU #: | 2437194 |
| Dimensions: | 3.06 in W x 2.68 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 50 Hz |
| Insulation: | Class A |
| Phase: | 1, 1 ph |
| Primary Voltage: | 230/460/575 VAC |
| Secondary Voltage: | 115/95 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Core/Coil Dry Fully Encapsulated |
| Circuit type: | 6150 Frame |
| Connection type: | Pressure Plate |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173120897 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58K0062 Ge Power Transformer
Brand: ABB
Part Number: 9T58K0062
Additional Description: ABB -9T58K0062 1C,0.05KVA,575230-115/95,55C,C&C,TB ,IP B,IP
Catalog Description: ABB's Machine tool core and coil transformers are isolation transformers designed to provide a high degree of secondary voltage stability (regulation) during a brief period of overload condition (also referred to as “inrush current”). They are ideal for applications where power regulation and space optimization are critical. Machine tool core and coil transformers feature welded cores to deliver outstanding performance, long life, and quiet operation.
9T58K0062 Application
Machine Tool, Electrical Distribution and Control Applications9T58K0062 Item Features
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Terminal board is anchored in the epoxy for greater reliability
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Copper windings
- Pressure plate terminals ensure secure connections
- 55 deg C temperature rise
- Offer simple, low cost fusing with terminal block models and minimum space are important
- 105 deg C temperature class
- Fingersafe terminals offer added protection and safety
9T58K0062 Standards
CE Marking|CSA 3272|cUL 5085|GSA Compliant|UL Listed File No. E2739SKU #2437194Part Number #9T58K0062UNSPSC39121026UPC00783173120897
