Part Number # 9T58K0065
SKU # 2437480
9T58K0065

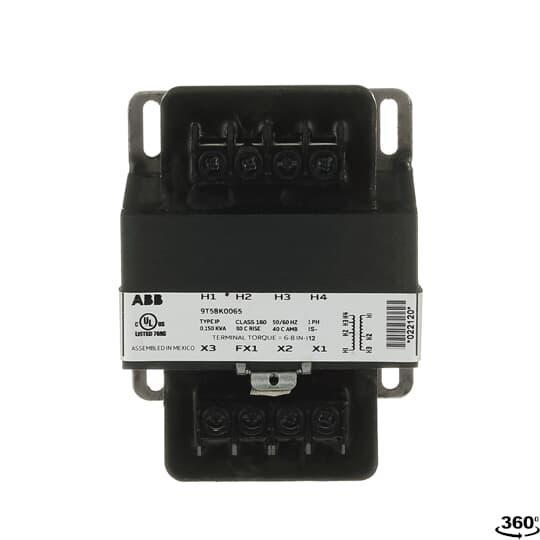

ABB 9T58K0065 Ge Power Control Transformer
Part Number # 9T58K0065
SKU # 2437480
ABB 9T58K0065 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K0065 |
| SKU #: | 2437480 |
| Dimensions: | 3.81 in W x 3.28 in H |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 50 Hz |
| Insulation: | IS-12 |
| Phase: | 1, 1 ph |
| Primary Voltage: | 230/460/575 V AC, 230/460/575 VAC |
| Secondary Voltage: | 115/95 V AC, 115/95 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Fully Encapsulated |
| Circuit type: | 8200 Frame |
| Connection type: | Pressure Plate |
| Housing material: | Plastic |
| Mounting type: | Panel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173123249 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58K0065 Ge Power Control Transformer
Brand: ABB
Part Number: 9T58K0065
Additional Description: ABB -9T58K0065 1C,0.15KVA,575230-115/95,80C,C&C,TB ,IP B,IP
Catalog Description: ABB's Machine tool core and coil transformers are isolation transformers designed to provide a high degree of secondary voltage stability (regulation) during a brief period of overload condition (also referred to as “inrush current”). They are ideal for applications where power regulation and space optimization are critical. Machine tool core and coil transformers feature welded cores to deliver outstanding performance, long life, and quiet operation.
9T58K0065 Application
Machine Tool, Industrial Control, Panelboard and General Purpose Applications9T58K0065 Item Features
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Terminal board is anchored in the epoxy for greater reliability
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Copper windings
- Pressure plate terminals ensure secure connections
- 80 deg C temperature rise
- K1-factor rated transformer
- 180 deg C insulation temperature, terminal board type
- Type IP and open core and coil power control transformer
- Transformers are built to standard sound level
- 8200 frame
- IS-12 insulation system
9T58K0065 Standards
CE Marking|cUL Listed|GSA Compliant|UL 506 File No. E2739SKU #2437480Part Number #9T58K0065UNSPSC39121026UPC00783173123249
Image provided may only be a representation of final product and may include optional equipment
