Part Number # 9T58K0069
SKU # 2437190
9T58K0069
ABB 9T58K0069 Ge Core And Coil Transformer
Part Number # 9T58K0069
SKU # 2437190
ABB 9T58K0069 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K0069 |
| SKU #: | 2437190 |
| Dimensions: | 4.56 in W x 3.9 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 50 Hz |
| Insulation: | IS-12 |
| Phase: | 1, 1 ph |
| Primary Voltage: | 230/460/575 V AC, 230/460/575 VAC |
| Secondary Voltage: | 115/95 V AC, 115/95 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Dry Encapsulated Small Power |
| Circuit type: | 10225 Frame |
| Connection type: | Terminal Board |
| Housing material: | Plastic |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173112267 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58K0069 Ge Core And Coil Transformer
Brand: ABB
Part Number: 9T58K0069
Additional Description: ABB -9T58K0069 (N) 1C,0.375KVA,575230-115/95,80C,C&C,T B,IP TB,IP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: ABB's Machine tool core and coil transformers are isolation transformers designed to provide a high degree of secondary voltage stability (regulation) during a brief period of overload condition (also referred to as “inrush current”). They are ideal for applications where power regulation and space optimization are critical. Machine tool core and coil transformers feature welded cores to deliver outstanding performance, long life, and quiet operation.
9T58K0069 Application
For machine tools are used to provide voltage to control devices in applications where regulation and minimum space are important, electrical distribution and control applications9T58K0069 Item Features
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Copper windings
- Flexible design allows input or output voltage to match any application
9T58K0069 Standards
CE Marking|CSA C22.2 No. 66/3272|cUL Listed|UL 5085 File No. E2739SKU #2437190Part Number #9T58K0069UNSPSC39121026UPC00783173112267

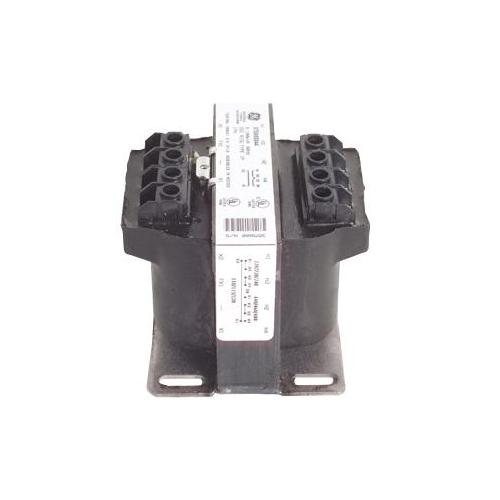

Image provided may only be a representation of final product and may include optional equipment
