Part Number # 9T58K0082
SKU # 2437479
9T58K0082
ABB 9T58K0082 Ge Power Control Transformer
Part Number # 9T58K0082
SKU # 2437479
ABB 9T58K0082 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K0082 |
| SKU #: | 2437479 |
| Dimensions: | 3.06 in W x 2.68 in H |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 50 Hz |
| Insulation: | Class A |
| Phase: | 1, 1 ph |
| Primary Voltage: | 208/277/380 V AC, 208/277/380 VAC |
| Secondary Voltage: | 115/95 V AC, 115/95 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Core/Coil Dry Fully Encapsulated |
| Circuit type: | 6150 Frame |
| Connection type: | Pressure Plate |
| Housing material: | Plastic |
| Mounting type: | Panel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173120965 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58K0082 Ge Power Control Transformer
Brand: ABB
Part Number: 9T58K0082
Additional Description: ABB -9T58K0082 (N) 1C,0.05KVA,380208-115/95,55C,C&C,TB ,IP B,IP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: ABB's Machine tool core and coil transformers are isolation transformers designed to provide a high degree of secondary voltage stability (regulation) during a brief period of overload condition (also referred to as “inrush current”). They are ideal for applications where power regulation and space optimization are critical. Machine tool core and coil transformers feature welded cores to deliver outstanding performance, long life, and quiet operation.
9T58K0082 Application
Machine Tool, Industrial Control, Panelboard, General Purpose, Electrical Distribution and Control Applications9T58K0082 Item Features
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Terminal board is anchored in the epoxy for greater reliability
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Copper windings
- Pressure plate terminals ensure secure connections
- 55 deg C temperature rise
- 105 deg C insulation temperature, terminal board type
- Electrostatically unshielded
- Fingersafe terminals offer added protection and safety
9T58K0082 Standards
CE Marking|cUL Listed|GSA Compliant|UL 506 File No. E2739SKU #2437479Part Number #9T58K0082UNSPSC39121026UPC00783173120965

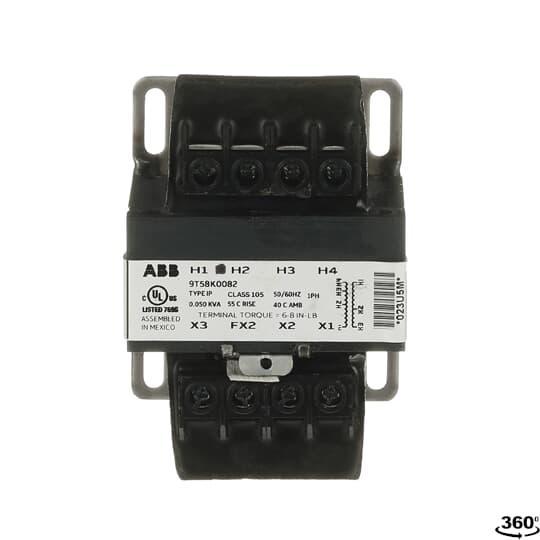

Image provided may only be a representation of final product and may include optional equipment
