Part Number # 9T58K0089G38
SKU # 2418970
Image Disclaimers Message
9T58K0089G38

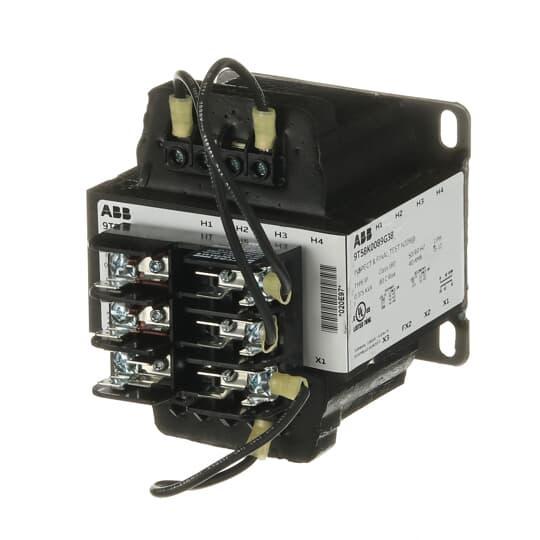

ABB 9T58K0089G38 Core And Coil Transformer
Part Number # 9T58K0089G38
SKU # 2418970
$300.66 / Each
ABB 9T58K0089G38 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K0089G38 |
| SKU #: | 2418970 |
| Dimensions: | 3.9 in H x 4.6 in W x 5.7 in D |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 50 Hz |
| Insulation: | IS-12 |
| Phase: | 1 |
| Primary Voltage: | 208/277/380 V AC, 208/277/380 VAC |
| Secondary Voltage: | 115/95 V AC, 115/95 VAC |
| Series: | 9T |
| Temperature Rating (Degrees F): | 80 deg C |
| Type: | Type QB Dry Encapsulated Small Power |
| Connection type: | Pressure Plate/Terminal Board |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173195567 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$300.66 / Each
Quantity:
- GE Core and Coil Transformer, Type QB Dry Encapsulated Small Power, Series: 9T, 208/277/380 V AC Primary, 115/95 VAC Secondary, 0.37 kVA, 50 Hz, 1 Phase, Pressure Plate/Terminal Board, IS-12, NEMA 3R, 80 deg C, 3.9 in H x 4.6 in W x 5.7 in D
9T58K0089G38 Application
Machine Tool, Electrical Distribution and Control Applications9T58K0089G38 Item Features
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Copper windings
- Flexible design allows input or output voltage to match any application
9T58K0089G38 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|cUL Listed|CE Certified|UL 5085, File No. E2739|CSA C22.2 No. 66, File No. 3272SKU #2418970Part Number #9T58K0089G38UNSPSC39121026UPC00783173195567
