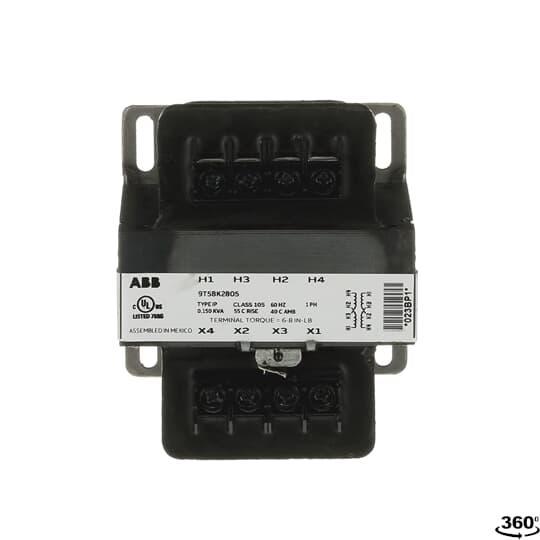

ABB 9T58K2805 Industrial Solutions Power Control Transformer
Part Number # 9T58K2805
SKU # 2418968
ABB 9T58K2805 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K2805 |
| SKU #: | 2418968 |
| Dimensions: | 3.81 in W x 3.28 in H |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 60 Hz |
| Insulation: | Class A |
| Phase: | 1, 1 ph |
| Primary Voltage: | 240/480 VAC |
| Secondary Voltage: | 120/240 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Core/Coil Dry Fully Encapsulated Harmonic Mitigation |
| Circuit type: | 8150 Frame |
| Connection type: | Pressure Plate |
| Housing material: | Plastic |
| Mounting type: | Panel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173121306 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58K2805 Industrial Solutions Power Control Transformer
Brand: ABB
Part Number: 9T58K2805
Additional Description: ABB -9T58K2805 1C,0.15KVA,240X480-120/240,55C,C&C, TB,IP
Catalog Description: ABB's General purpose encapsulated open core, and coil transformer (also known as Type IP Control Power transformers) are ideally suited for industrial and light-duty loads, HVAC applications, signal and alarm systems, industrial control panels, lighting, and circuit isolation. The optional fuse block adapter kits enable input and output flexibility. Type IP Control Power transformers are an economical alternative to high in-rush/machine tool transformers.
9T58K2805 Application
Machine Tool, Industrial Control, Panelboard, General Purpose, Electrical Distribution and Control Applications9T58K2805 Item Features
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Terminal board is anchored in the epoxy for greater reliability
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Copper windings
- Pressure plate terminals ensure secure connections
- 55 deg C temperature rise
- 105 deg C insulation temperature, terminal board type
- Electrostatically unshielded
- Fingersafe terminals offer added protection and safety
9T58K2805 Standards
CE Marking|cUL Listed|UL 506 File No. E2739SKU #2418968Part Number #9T58K2805UNSPSC39121026UPC00783173121306
