Part Number # 9T58K2806
SKU # 2418983
9T58K2806
ABB 9T58K2806 Power Control Transformer
Part Number # 9T58K2806
SKU # 2418983
ABB 9T58K2806 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K2806 |
| SKU #: | 2418983 |
| Dimensions: | 3.81 in W x 3.28 in H |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 60 Hz |
| Insulation: | IS-12 |
| Phase: | 1, 1 ph |
| Primary Voltage: | 240/480 V AC, 240/480 VAC |
| Secondary Voltage: | 120/240 V AC, 120/240 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Fully Encapsulated |
| Circuit type: | 8175 Frame |
| Connection type: | Pressure Plate |
| Housing material: | Plastic |
| Mounting type: | Panel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173123539 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58K2806 Power Control Transformer
Brand: ABB
Part Number: 9T58K2806
Additional Description: ABB -9T58K2806 (N) 1C,0.2KVA,240X480-120/240,80C,C&C,T B,IP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: ABB's General purpose encapsulated open core, and coil transformer (also known as Type IP Control Power transformers) are ideally suited for industrial and light-duty loads, HVAC applications, signal and alarm systems, industrial control panels, lighting, and circuit isolation. The optional fuse block adapter kits enable input and output flexibility. Type IP Control Power transformers are an economical alternative to high in-rush/machine tool transformers.
9T58K2806 Application
Machine Tool, Industrial Control, Panelboard and General Purpose Applications9T58K2806 Item Features
- Copper windings
- Electro statically unshielded
- Transformers are built to standard sound level
- 8175 frame
- 80 deg C temperature rise
- K1-factor rated transformer
- IS-12 insulation system
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminal ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Type IP and open core and coil power control transformer
- 180 deg C insulation temperature, terminal board type
9T58K2806 Standards
CE Certified|cUL Listed|GSA Compliant|UL 506 File No. E2739SKU #2418983Part Number #9T58K2806UNSPSC39121026UPC00783173123539

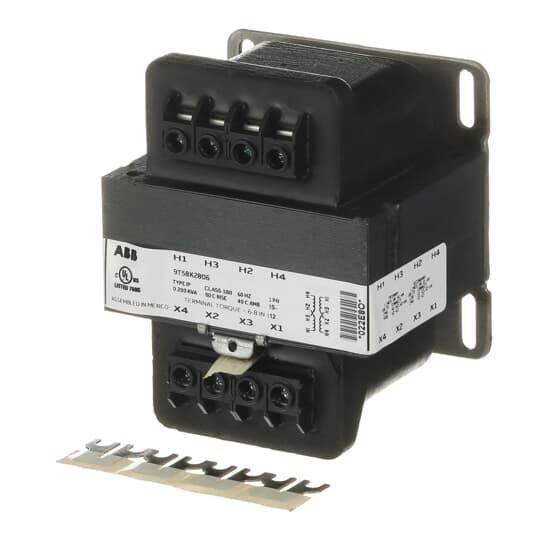

Image provided may only be a representation of final product and may include optional equipment
