Brand: ABB

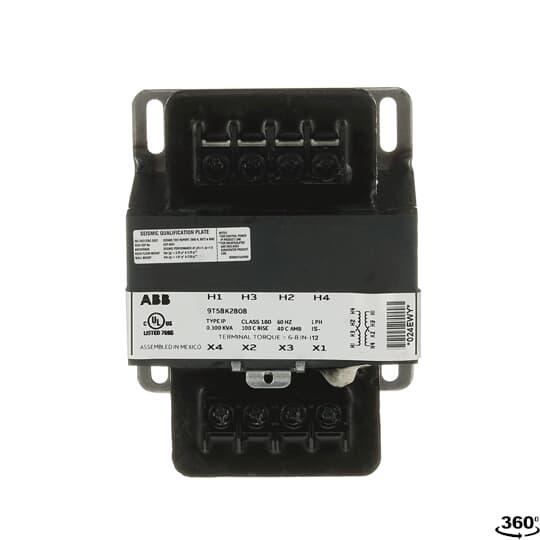

ABB 9T58K2808 Power Control Transformer
Part Number # 9T58K2808
SKU # 2418987
$234.36 / Each
ABB 9T58K2808 Key Features
Brand: ABB
Part Number # 9T58K2808
SKU #2418987
Dimensions: 3.81 in W x 3.28 in H
Enclosure Type: NEMA 1
Frequency Rating: 60 Hz
Insulation: IS-12
Phase: 1, 1 ph
Power Rating: 0.3 kVA
Primary Voltage: 240/480 VAC
Secondary Voltage: 120/240 VAC
Series: 9T58K
Temperature Rating (Degrees F): 40 deg C
Type: Fully Encapsulated
Circuit type: 8200 Frame
Connection type: Pressure Plate
Housing material: Plastic
Mounting type: Panel
Manufacturer Name: ABB
UNSPSC: 39121026
UPC: 00783173123560
$234.36 / Each
ABB 9T58K2808 Power Control Transformer
Brand: ABB
Part Number: 9T58K2808
Additional Description: ABB -9T58K2808 1C,0.3KVA,240X480-120/240,100C,C&C, TB,IP
Catalog Description: ABB's General purpose encapsulated open core, and coil transformer (also known as Type IP Control Power transformers) are ideally suited for industrial and light-duty loads, HVAC applications, signal and alarm systems, industrial control panels, lighting, and circuit isolation. The optional fuse block adapter kits enable input and output flexibility. Type IP Control Power transformers are an economical alternative to high in-rush/machine tool transformers.
9T58K2808 Application
Machine Tool, Industrial Control, Panelboard and General Purpose Applications9T58K2808 Item Features
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Terminal board is anchored in the epoxy for greater reliability
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Copper windings
- Pressure plate terminals ensure secure connections
- 100 deg C temperature rise
- K1-factor rated transformer
- 180 deg C insulation temperature, terminal board type
- Type IP and open core and coil power control transformer
- Transformers are built to standard sound level
- 8200 frame
- IS-12 insulation system
9T58K2808 Standards
CE Marking|cUL Listed|GSA Compliant|UL 506 File No. E2739SKU #2418987Part Number #9T58K2808UNSPSC39121026UPC00783173123560
