Brand: ABB
9T58K2809

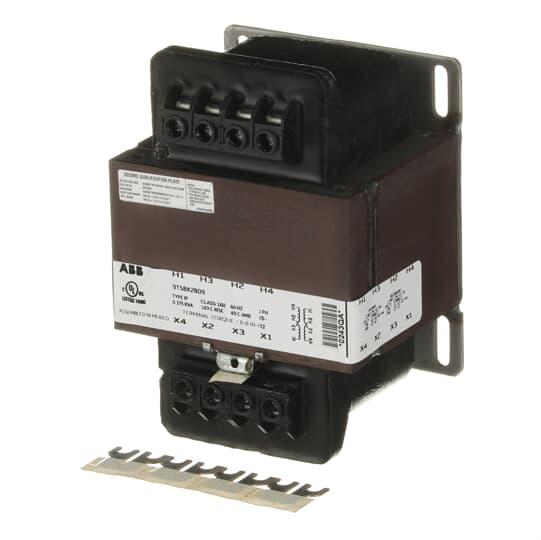

ABB 9T58K2809 Core And Coil Transformer
Part Number # 9T58K2809
SKU # 2418966
$283.69 / Each
ABB 9T58K2809 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K2809 |
| SKU #: | 2418966 |
| Dimensions: | 3.81 in W x 3.28 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 60 Hz |
| Insulation: | IS-12 |
| Phase: | 1, 1 ph |
| Primary Voltage: | 240/480 V AC, 240/480 VAC |
| Secondary Voltage: | 120/240 V AC, 120/240 VAC |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Dry Type Encapsulated Small Power |
| Circuit type: | 8250 Frame |
| Connection type: | Terminal Board |
| Housing material: | Plastic |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173127841 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$283.69 / Each
Quantity:
- GE Core and Coil Transformer, Dry Type Encapsulated Small Power, 240/480 V AC Primary, 120/240 VAC Secondary, 0.37 kVA, 60 Hz, 1 ph, Terminal Board, 8250 Frame, IS-12, Open, 40 deg C, Plastic Housing, 3.81 in W x 3.28 in H
9T58K2809 Application
For machine tools are used to provide voltage to control devices in applications where regulation and minimum space are important9T58K2809 Item Features
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Copper windings
- Flexible design allows input or output voltage to match any application
- Available fuse clips offer simple, low cost fusing with terminal block models and minimum space are important
9T58K2809 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|GSA Compliant|UL 5085 File No. E2739|cUL Listed|CE Marked|CSA C22.2 No. 66 File No. 3272SKU #2418966Part Number #9T58K2809UNSPSC39121026UPC00783173127841
