9T58K2811

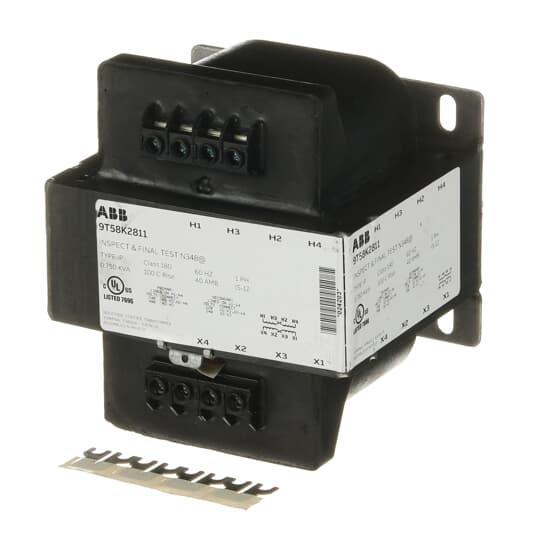

ABB 9T58K2811 Core And Coil Transformer
Part Number # 9T58K2811
SKU # 2418984
ABB 9T58K2811 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K2811 |
| SKU #: | 2418984 |
| Dimensions: | 5.31 in W x 4.56 in H |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 60 Hz |
| Insulation: | IS-12 |
| Phase: | 1, 1 ph |
| Primary Voltage: | 240/480 VAC |
| Secondary Voltage: | 120/240 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 100 deg C |
| Type: | Dry Encapsulated Small Power |
| Connection type: | Pressure Plate/Terminal Board |
| Mounting type: | Panel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173151174 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58K2811 Core And Coil Transformer
Brand: ABB
Part Number: 9T58K2811
Additional Description: ABB -9T58K2811 1C,0.75KVA,240X480-120/240,100,C&C, TB,IP
Catalog Description: ABB's General purpose encapsulated open core, and coil transformer (also known as Type IP Control Power transformers) are ideally suited for industrial and light-duty loads, HVAC applications, signal and alarm systems, industrial control panels, lighting, and circuit isolation. The optional fuse block adapter kits enable input and output flexibility. Type IP Control Power transformers are an economical alternative to high in-rush/machine tool transformers.
9T58K2811 Application
General Purpose, Industrial Control, Machine Tool, Panelboard, Electrical Distribution and Control Applications9T58K2811 Item Features
- Rugged, high impact plastic terminal board
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Copper windings
- Flexible design allows input or output voltage to match any application
9T58K2811 Standards
CE Marking|CSA C22.2 No. 66/3272|cUL Listed|UL 5085 File No. E2739SKU #2418984Part Number #9T58K2811UNSPSC39121026UPC00783173151174
