Part Number # 9T58K2813
SKU # 2418985
9T58K2813

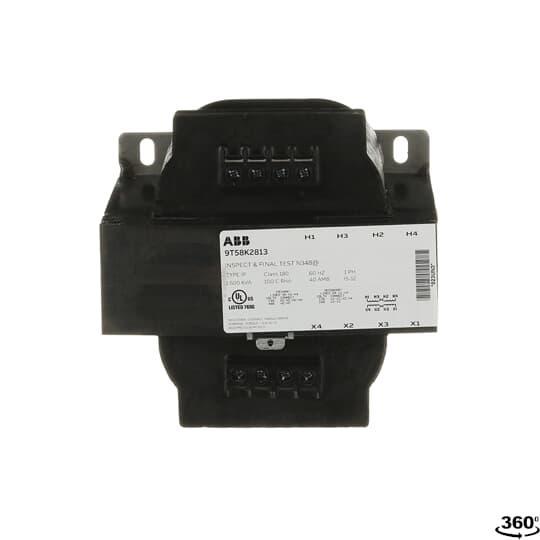

ABB 9T58K2813 Power Transformer
Part Number # 9T58K2813
SKU # 2418985
ABB 9T58K2813 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K2813 |
| SKU #: | 2418985 |
| Dimensions: | 6.8 in W x 6.3 in D x 5.8 in H |
| Enclosure Type: | Open |
| Frequency Rating: | 60 Hz |
| Insulation: | IS-12 |
| Phase: | 1, 1 ph |
| Primary Voltage: | 240/480 V AC, 240/480 VAC |
| Secondary Voltage: | 120/240 V AC, 120/240 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Core/Coil Dry Encapsulated |
| Circuit type: | 14225 Frame |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173151198 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58K2813 Power Transformer
Brand: ABB
Part Number: 9T58K2813
Additional Description: ABB -9T58K2813 1C,1.5KVA,240X480-120/240,100C,C&C, TB,IP
Catalog Description: ABB's General purpose encapsulated open core, and coil transformer (also known as Type IP Control Power transformers) are ideally suited for industrial and light-duty loads, HVAC applications, signal and alarm systems, industrial control panels, lighting, and circuit isolation. The optional fuse block adapter kits enable input and output flexibility. Type IP Control Power transformers are an economical alternative to high in-rush/machine tool transformers.
9T58K2813 Application
For use to provide voltage to control devices in applications where regulation and minimum space are important and electrical distribution and control applications9T58K2813 Item Features
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Copper windings
- Flexible design allows input or output voltage to match any application
- Copper coil
- 100 deg C temperature rise
- 180 deg C temperature class
9T58K2813 Standards
CE Marking|CSA 3272|cUL 5085 File No. E2739|UL ListedSKU #2418985Part Number #9T58K2813UNSPSC39121026UPC00783173151198
Image provided may only be a representation of final product and may include optional equipment
