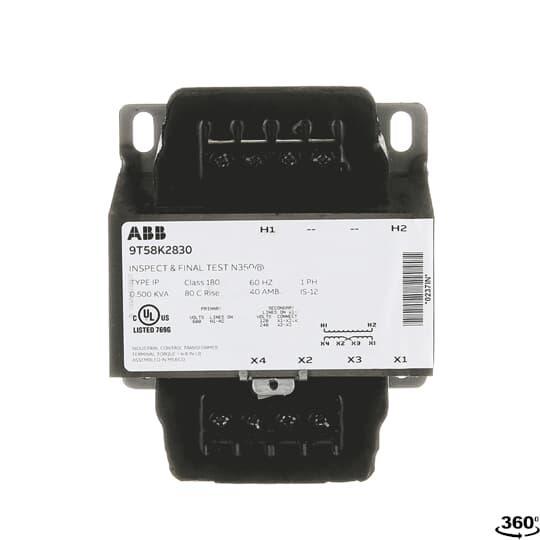

ABB 9T58K2830 Power Control Transformer
Part Number # 9T58K2830
SKU # 2418981
ABB 9T58K2830 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K2830 |
| SKU #: | 2418981 |
| Dimensions: | 4.56 in W x 3.9 in H |
| Enclosure Type: | NEMA 1 |
| Frequency Rating: | 60 Hz |
| Insulation: | IS-12 |
| Phase: | 1, 1 ph |
| Primary Voltage: | 600 V AC, 600 VAC |
| Secondary Voltage: | 120/240 V AC, 120/240 VAC |
| Series: | 9T58K |
| Temperature Rating (Degrees F): | 40 deg C |
| Type: | Fully Encapsulated |
| Circuit type: | 10225 Frame |
| Connection type: | Pressure Plate |
| Housing material: | Plastic |
| Mounting type: | Panel |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173112281 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58K2830 Power Control Transformer
Brand: ABB
Part Number: 9T58K2830
Additional Description: ABB -9T58K2830 1C,0.5KVA,600-120/240,80C,C&C,TB,IP
Catalog Description: ABB's General purpose encapsulated open core, and coil transformer (also known as Type IP Control Power transformers) are ideally suited for industrial and light-duty loads, HVAC applications, signal and alarm systems, industrial control panels, lighting, and circuit isolation. The optional fuse block adapter kits enable input and output flexibility. Type IP Control Power transformers are an economical alternative to high in-rush/machine tool transformers.
9T58K2830 Application
Machine Tool, Industrial Control, Panelboard, General Purpose, Electrical Distribution and Control Applications9T58K2830 Item Features
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Finger safe terminals offer added protection and safety
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Copper windings
- Available fuse clips offer simple, low cost fusing with terminal block models and minimum space are important
- Type IP and open core and coil power control transformer
- 180 deg C insulation temperature, terminal board type
- Electro statically unshielded
- 80 deg C temperature rise
- K1 factor rated transformer
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
9T58K2830 Standards
CE Certified|cUL Listed|GSA Compliant|UL 506|UL File No. E2739SKU #2418981Part Number #9T58K2830UNSPSC39121026UPC00783173112281
Image provided may only be a representation of final product and may include optional equipment
