- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Terminal board is anchored in the epoxy for greater reliability
- Wide variety of fusing options
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Flexible design allows input or output voltage to match any application
- Copper windings
- Pressure plate terminals ensure secure connections
- 55 deg C temperature rise
- Offer simple, low cost fusing with terminal block models and minimum space are important
- 105 deg C temperature class
- Fingersafe terminals offer added protection and safety
Specifications
Brand: ABB
Dimensions: 3.81 in W x 3.28 in H
Enclosure Type: Open
Frequency Rating: 60 Hz
Insulation: Class A
Phase: 1 ph
Power Rating: 0.15 kVA
Primary Voltage: 120/240 VAC
Secondary Voltage: 12/24 VAC
Series: 9T58K
Temperature Rating (Degrees F): 40 deg C
Type: Core/Coil Fully Encapsulated
Circuit type: 8150 Frame
Connection type: Pressure Plate
UNSPSC: 39121026
UPC: 00783173121344

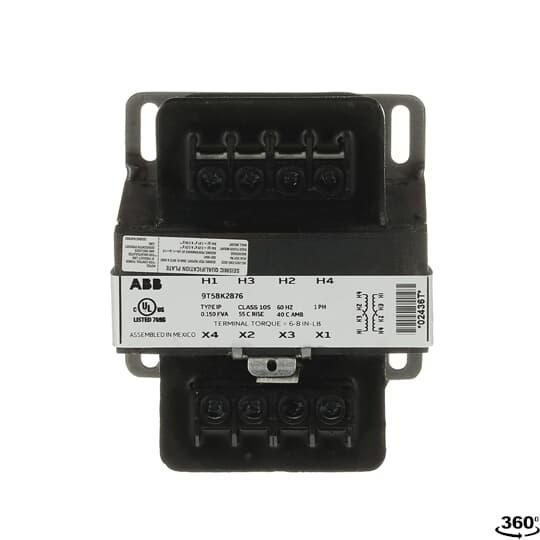

ABB 9T58K2876 Power Transformer
Additional Description: ABB -9T58K2876 1C,0.15kVA,120x240-12/24,55C,C&C,TB ,IP
Catalog Description: ABB's General purpose encapsulated open core, and coil transformer (also known as Type IP Control Power transformers) are ideally suited for industrial and light-duty loads, HVAC applications, signal and alarm systems, industrial control panels, lighting, and circuit isolation. The optional fuse block adapter kits enable input and output flexibility. Type IP Control Power transformers are an economical alternative to high in-rush/machine tool transformers.
