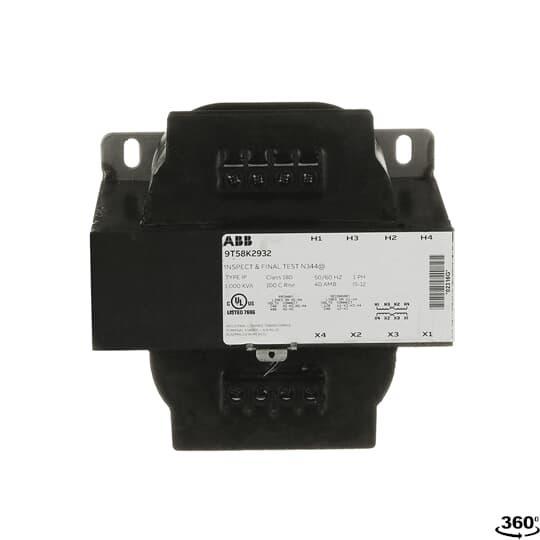

ABB 9T58K2932 Industrial Solution Core And Coil Transformer
Part Number # 9T58K2932
SKU # 2418499
ABB 9T58K2932 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K2932 |
| SKU #: | 2418499 |
| Dimensions: | 6.81 in W x 5.81 in H |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 50 Hz |
| Insulation: | IS-12 |
| Phase: | 1, 1 ph |
| Primary Voltage: | 240/480 VAC |
| Secondary Voltage: | 120/240 VAC |
| Series: | 9T |
| Temperature Rating (Degrees F): | 100 deg C |
| Type: | Type QB Dry Encapsulated Small Power |
| Connection type: | Pressure Plate/Terminal Board |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173153918 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58K2932 Industrial Solution Core And Coil Transformer
Brand: ABB
Part Number: 9T58K2932
Additional Description: ABB -9T58K2932 1C,1KVA,240X480-120/240,100C,50/60, TB,IP
Catalog Description: ABB's General purpose encapsulated open core, and coil transformer (also known as Type IP Control Power transformers) are ideally suited for industrial and light-duty loads, HVAC applications, signal and alarm systems, industrial control panels, lighting, and circuit isolation. The optional fuse block adapter kits enable input and output flexibility. Type IP Control Power transformers are an economical alternative to high in-rush/machine tool transformers.
9T58K2932 Application
Electrical Distribution and Control Applications9T58K2932 Item Features
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Copper windings
- Flexible design allows input or output voltage to match any application
9T58K2932 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|cUL Listed|CE Certified|UL 5085, File No. E2739|CSA C22.2 No. 66, File No. 3272SKU #2418499Part Number #9T58K2932UNSPSC39121026UPC00783173153918
