Part Number # 9T58K3716
SKU # 2418967
Image Disclaimers Message
9T58K3716

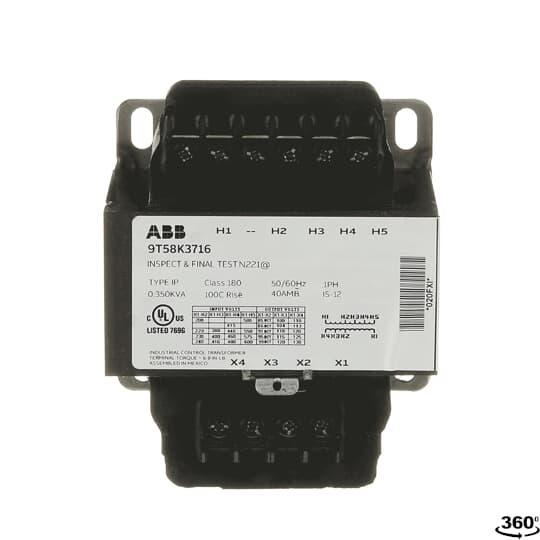

ABB 9T58K3716 Core And Coil Transformer
Part Number # 9T58K3716
SKU # 2418967
ABB 9T58K3716 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K3716 |
| SKU #: | 2418967 |
| Dimensions: | 3.9 in H x 4.6 in W x 5.7 in D |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 50 Hz |
| Insulation: | IS-12 |
| Phase: | 1 |
| Primary Voltage: | 230/400/460/575 VAC |
| Secondary Voltage: | 115/95/125 VAC |
| Series: | 9T |
| Temperature Rating (Degrees F): | 100 deg C |
| Type: | Type QB Dry Encapsulated |
| Connection type: | Pressure Plate/Terminal Board |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173161333 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T58K3716 Core And Coil Transformer
Brand: ABB
Part Number: 9T58K3716
Additional Description: ABB -9T58K3716 (N) 1C,0.35KVA,575230-12595,100C,50/60H ,IP 0H,IP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: ABB's Machine tool core and coil transformers are isolation transformers designed to provide a high degree of secondary voltage stability (regulation) during a brief period of overload condition (also referred to as “inrush current”). They are ideal for applications where power regulation and space optimization are critical. Machine tool core and coil transformers feature welded cores to deliver outstanding performance, long life, and quiet operation.
9T58K3716 Application
Machine Tool, Electrical Distribution and Control Applications9T58K3716 Item Features
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Copper windings
- Flexible design allows input or output voltage to match any application
9T58K3716 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|cUL Listed|CE Certified|UL 5085, File No. E2739|CSA C22.2 No. 66, File No. 3272SKU #2418967Part Number #9T58K3716UNSPSC39121026UPC00783173161333
