9T58K4183

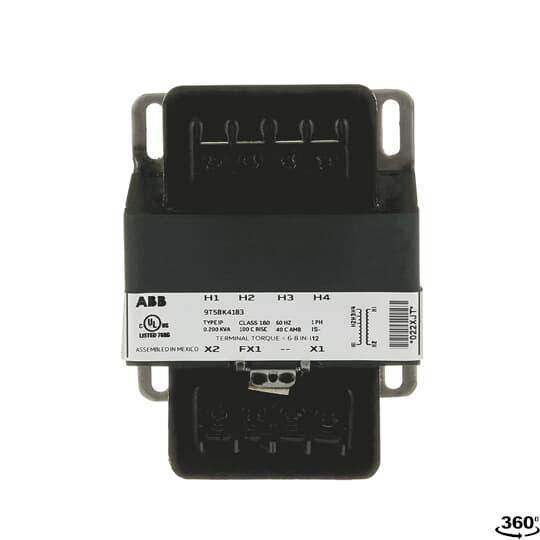

ABB 9T58K4183 Core And Coil Transformer
Part Number # 9T58K4183
SKU # 2418991
$252.85 / Each
ABB 9T58K4183 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K4183 |
| SKU #: | 2418991 |
| Dimensions: | 3.3 in H x 3.8 in W x 5.1 in D |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 60 Hz |
| Insulation: | IS-12 |
| Phase: | 1 |
| Primary Voltage: | 208/240/480 V AC, 208/240/480 VAC |
| Secondary Voltage: | 24 V AC, 24 VAC |
| Series: | 9T |
| Temperature Rating (Degrees F): | 100 deg C |
| Type: | Type QB Dry Encapsulated |
| Connection type: | Pressure Plate/Terminal Board |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173154021 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$252.85 / Each
Quantity:
- GE Core and Coil Transformer, Type QB Dry Encapsulated, Series: 9T, 208/240/480 V AC Primary, 24 VAC Secondary, 0.2 kVA, 60 Hz, 1 Phase, Pressure Plate/Terminal Board, IS-12, NEMA 3R, 100 deg C, 3.3 in H x 3.8 in W x 5.1 in D
9T58K4183 Application
Electrical Distribution and Control Applications9T58K4183 Item Features
- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Copper windings
- Flexible design allows input or output voltage to match any application
9T58K4183 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|cUL Listed|CE Certified|UL 5085, File No. E2739|CSA C22.2 No. 66, File No. 3272SKU #2418991Part Number #9T58K4183UNSPSC39121026UPC00783173154021
