Part Number # 9T58K4350
SKU # 2418979
Image Disclaimers Message
Brand: ABB
9T58K4350

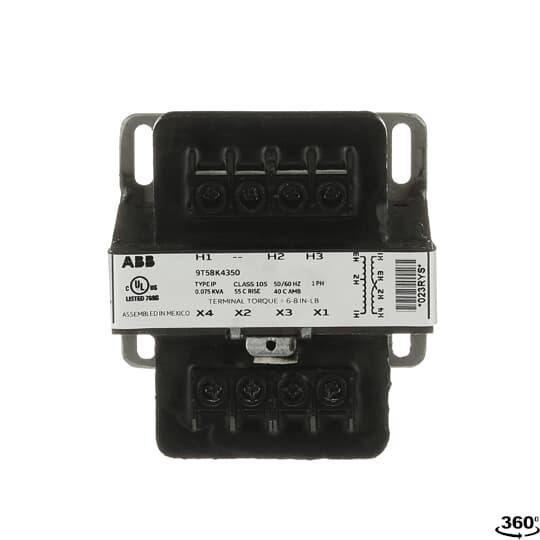

ABB 9T58K4350 Core And Coil Transformer
Part Number # 9T58K4350
SKU # 2418979
$147.85 /  Each
ABB 9T58K4350 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T58K4350 |
| SKU #: | 2418979 |
| Dimensions: | 3.3 in H x 3.8 in W x 4.1 in D |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 50 Hz |
| Insulation: | Class A |
| Phase: | 1 |
| Primary Voltage: | 120/240 V AC, 120/240 VAC |
| Secondary Voltage: | 12/24 V AC, 12/24 VAC |
| Series: | 9T |
| Temperature Rating (Degrees F): | 55 deg C |
| Type: | Type QB Dry Encapsulated |
| Connection type: | Pressure Plate/Terminal Board |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121026 |
| UPC: | 00783173825747 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$147.85 /  Each
Quantity:
- GE Core and Coil Transformer, Type QB Dry Encapsulated, Series: 9T, 120/240 V AC Primary, 12/24 VAC Secondary, 0.08 kVA, 50 Hz, 1 Phase, Pressure Plate/Terminal Board, Class A, NEMA 3R, 55 deg C, 3.3 in H x 3.8 in W x 4.1 in D9T58K4350 ApplicationMachine Tool, Electrical Distribution and Control Applications9T58K4350 Item Features- Core and coil transformers for machine tool applications are used to provide voltage to control devices in applications where regulation and minimum space are important
- Fully encapsulated coil is impervious to moisture
- Pressure plate terminals ensure secure connections
- Terminal board is anchored in the epoxy for greater reliability
- Rugged, high impact plastic terminal board
- Full head #8 brass screws assure quick, easy terminations with maximum connection integrity
- Copper windings
- Flexible design allows input or output voltage to match any application
 9T58K4350 StandardsARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|cUL Listed|CE Certified|UL 5085, File No. E2739|CSA C22.2 No. 66, File No. 3272SKU #2418979Part Number #9T58K4350UNSPSC39121026UPC00783173825747
