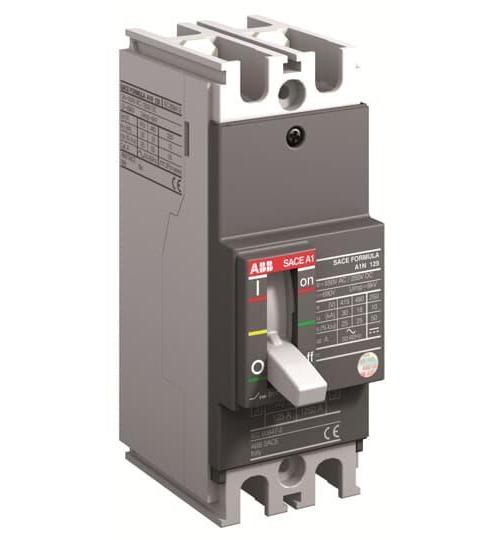

ABB A1A020TW-2 FORMULA Molded Case Circuit Breaker
Part Number # A1A020TW-2
SKU # 2263549
$186.81 / Each
ABB A1A020TW-2 Key Features
Brand: ABB
Part Number # A1A020TW-2
SKU #2263549
Amperage Rating: 20, 20 A
Dimensions: 5.12 in H x 2 in W x 2.36 in D
Frame: A1A 100A
Frequency Rating: 50/60, 50/60 Hz
Interrupt Rating: 5/10, 5/10 kA
Number of Poles: 2
Temperature Rating (Degrees F): -13 to 158, -13 to 158 deg F
Trip Range: 20 to 400, 20 to 400 A
Trip Type: Thermal Magnetic, Thermal/Magnetic
Type: Adequate Interrupt Low Voltage
Voltage Rating: 240 VAC, 250 VDC, 240 VAC/250 VDC
Connection type: Front
Country of origin: IT
Mounting type: DIN Rail/Fixed
Manufacturer Name: ABB
UNSPSC: 39121616
UPC: 08015644704841
$186.81 / Each
ABB A1A020TW-2 FORMULA Molded Case Circuit Breaker
Brand: ABB
Part Number: A1A020TW-2
ABB FORMULA Molded Case Circuit Breaker, Adequate Interrupt Low Voltage, 240 VAC, 250 VDC, 20 A, 50/60 Hz Frequency, 5/10 kA Interrupt, A1A 100A Frame, Thermal/Magnetic Trip, 20 to 400 A Trip, 2 Pole, Front Connection, DIN Rail/Fixed Mounting, -13 to 158 deg F, 5.12 in H x 2 in W x 2.36 in D Dimensions
Additional Description: ABB -A1A020TW-2 A1A 100 TMF 20-400 2P F F UL
Catalog Description: 2 pole, 20 amps rated at 240V AC and 250V DC, fixed trip point molded case circuit breaker, with a thermal magnetic trip device and 10kA at 240V AC and 5kA at 250V DC interrupt current rating
A1A020TW-2 Application
For power distribution and panelboards with 15 to 100 A capacityA1A020TW-2 Item Features
- Reduced circuit breaker depths
- Multiple polarities, dedicated to various applications
- Quick and easy selection and ordering with few, but essential, versions of circuit breakers
- Smaller size with full protection
- Accompanying accessory line
- 10 kA at 240 VAC and 5 kA at 250 VDC interrupt current rating
A1A020TW-2 Standards
UL 489|IEC 60947-2|UL Listed|IEC 60947-2SKU #2263549Part Number #A1A020TW-2UNSPSC39121616UPC08015644704841
