Part Number # A2N125TW
SKU # 2290020
A2N125TW
ABB A2N125TW FORMULA Molded Case Circuit Breaker
Part Number # A2N125TW
SKU # 2290020
ABB A2N125TW Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | A2N125TW |
| SKU #: | 2290020 |
| Amperage Rating: | 125 A |
| Dimensions: | 5.91 in H x 4.13 in W x 2.36 in D |
| Frame: | A2N 250A |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 25, 25 kA |
| Number of Poles: | 3 |
| Temperature Rating (Degrees F): | -13 to 158, -13 to 158 deg F |
| Trip Range: | 125 to 1250, 125 to 1250 A |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Low Voltage Normal Interrupt |
| Connection type: | Front |
| Country of origin: | IT |
| Mounting type: | DIN Rail/Fixed |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121616 |
| UPC: | 08015644705459 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB A2N125TW FORMULA Molded Case Circuit Breaker
Brand: ABB
Part Number: A2N125TW
ABB FORMULA Molded Case Circuit Breaker, Low Voltage Normal Interrupt, 240 VAC, 250 VDC, 125 A, 50/60 Hz Frequency, 25 kA Interrupt, A2N 250A Frame, Thermal/Magnetic Trip, 125 to 1250 A Trip, 3 Pole, Front Connection, DIN Rail/Fixed Mounting, -13 to 158 deg F, 5.91 in H x 4.13 in W x 2.36 in D Dimensions
Additional Description: ABB -A2N125TW A2N 250 TMF 125-1250 3P F F UL
Catalog Description: 3 pole, 125 amps rated at 240V AC and 250V DC, fixed trip point molded case circuit breaker, with a thermal magnetic trip device and 25kA at 240V AC/DC interrupt current rating
A2N125TW Application
For power distribution and panelboards with 125 to 250 A capacityA2N125TW Item Features
- Multiple polarities, dedicated to various applications
- Smaller size with full protection
- Quick and easy selection and ordering with few, but essential, versions of circuit breakers
- Reduced circuit breaker depths
- 250 A frame rating
- 25 kA at 240 VAC/VDC interrupt current rating
- Accompanying accessory line
A2N125TW Standards
UL Listed|UL 489|IEC 60947-2SKU #2290020Part Number #A2N125TWUNSPSC39121616UPC08015644705459

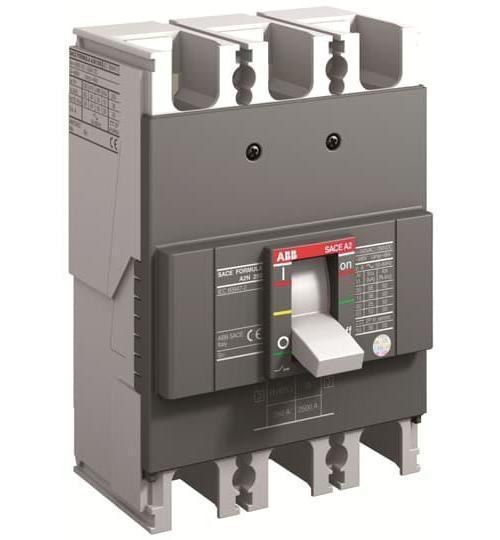

Image provided may only be a representation of final product and may include optional equipment
