Part Number # T6NQ600CW
SKU # 2207779

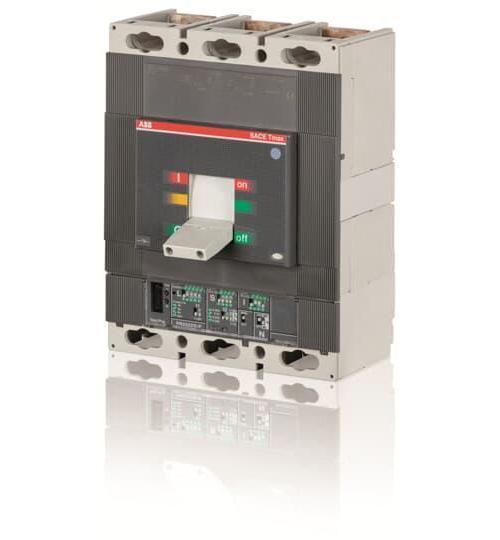

Image provided may only be a representation of
final product and may include optional equipment
T6NQ600CW
ABB T6NQ600CW Tmax Molded Case Circuit Breaker
Part Number # T6NQ600CW
SKU # 2207779
ABB T6NQ600CW Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | T6NQ600CW |
| SKU #: | 2207779 |
| Amperage Rating: | 600, 600 A |
| Dimensions: | 10.55 in H x 8.26 in W x 4.07 in D |
| Frame: | T6NQ |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 20, 20 kA |
| Number of Poles: | 3 |
| Trip Range: | 240 to 600, 240 to 600 A |
| Trip Type: | LS/I, Thermal Magnetic |
| Wire Size: | 250 to 500, 250 to 500 kcmil |
| Country of origin: | IT |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121616 |
| UPC: | 08057558253435 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB T6NQ600CW Tmax Molded Case Circuit Breaker
Brand: ABB
Part Number: T6NQ600CW
ABB Tmax Molded Case Circuit Breaker, 600 VAC, 600 A, 50/60 Hz Frequency, 20 kA Interrupt, T6NQ Frame, LS/I Trip, 240 to 600 A Trip, 3 Pole, 250 to 500 kcmil Wire, Double Insulated Insulation, 10.55 in H x 8.26 in W x 4.07 in D Dimensions
Additional Description: ABB -T6NQ600CW (N) BKR T6N 600A 3P LSI UL 100P F F NON-CANCELABLE, NON-RETURNABLE
Catalog Description: TMAX Breaker frame size T6, normal interrupting rating, 600A, 3 pole, long time, short time and instantaneous protection functions, Underwriters Laboratory (sold in the US)
T6NQ600CW Application
For power distribution applicationsT6NQ600CW Item Features
- Double insulation - this construction characteristic allows for the CSA/UL listed field installation of internal accessories without exposure to energized parts
- Positive operation - breakers from ABB ensure that the toggle indicates the precise position of the moving contacts, this guarantees safe and reliable signaling by the device
- Installation - Tmax molded case circuit breakers can be installed in panels and switchboards in either the horizontal or vertical planes while being fed from either end without any derating of their performance characteristics
- Compact size
- The Tmax molded case circuit breakers are CSA-UL listed and IEC rated for global application and acceptance
- The versions of the Tmax family are suitable for reverse feed applications
- Normal interrupt rating class
- Without lug
