Part Number # T7PMD0C40D0AAAAAXX
SKU # 2307040

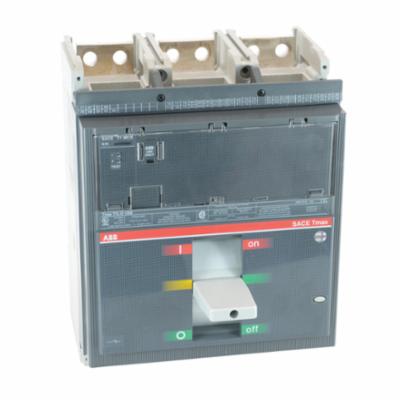

Image provided may only be a representation of
final product and may include optional equipment
T7PMD0C40D0AAAAAXX
ABB T7PMD0C40D0AAAAAXX Molded Case Circuit Breaker
Part Number # T7PMD0C40D0AAAAAXX
SKU # 2307040
ABB T7PMD0C40D0AAAAAXX Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | T7PMD0C40D0AAAAAXX |
| SKU #: | 2307040 |
| Actuator Type: | Toggle |
| Dimensions: | 10.55 in H x 8.26 in W x 6.06 in D |
| Frame: | 1000/1200, 1000/1200 A |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Series: | Tmax |
| Trip Type: | Non-Automatic Molded Case Switch |
| Country of origin: | IT |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121616 |
| UPC: | 08057558254746 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB T7PMD0C40D0AAAAAXX Molded Case Circuit Breaker
Brand: ABB
Part Number: T7PMD0C40D0AAAAAXX
ABB Molded Case Circuit Breaker, Series, 600, Amperage Rating VAC, Frequency Rating, Hz 50/60, Frame, A 1000/1200, Non-Automatic Molded Case Switch Trip, Trip Range, 3 Pole, Phase, Toggle Actuator, Connection Type, Wire Size, Enclosure Type, Temperature Rating, 10.55 in H x 8.26 in W x 6.06 in D, Material, Finish
Additional Description: ABB -T7PMD0C40D0AAAAAXX (N) T7D/PV-E 1600 4P F F M 1500V DC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Tmax Molded Circuit Breaker, Frame Size 1000A, 1200A (Toggle)
T7PMD0C40D0AAAAAXX Application
For power distribution applicationsT7PMD0C40D0AAAAAXX Item Features
- This construction characteristic allows for the CSA/UL listed field installation of internal accessories without exposure to energized parts
- Breakers from ABB ensure that the toggle indicates the precise position of the moving contacts, this guarantees safe and reliable signaling by the device
- Tmax molded case circuit breakers can be installed in panels and switchboards in either the horizontal or vertical planes while being fed from either end without any derating of their performance characteristics
- Compact size molded case circuit breaker
- All Tmax molded case circuit breakers are CSA/UL listed and IEC rated for global application and acceptance
- All versions of the Tmax family are suitable for reverse feed applications
- 1000/1200 A (toggle) frame
- The T7 breaker is a 1200 A frame with a microprocessor based over current protective trip system
T7PMD0C40D0AAAAAXX Standards
UL 489|UL File No. E93565|CSA C22.2 No. 5|CSA File No. LR54280|IEC 60947-2SKU #2307040Part Number #T7PMD0C40D0AAAAAXXUNSPSC39121616UPC08057558254746
