Part Number # T8VBC3FE000000XX
SKU # 2320797
T8VBC3FE000000XX
ABB T8VBC3FE000000XX Molded Case Circuit Breaker
Part Number # T8VBC3FE000000XX
SKU # 2320797
ABB T8VBC3FE000000XX Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | T8VBC3FE000000XX |
| SKU #: | 2320797 |
| Amperage Rating: | 1600, 1600 A |
| Dimensions: | 15 in H x 16.8 in W x 11.2 in D |
| Frame: | 1600, 1600 A |
| Frequency Rating: | 50/60, 50/60 Hz |
| Interrupt Rating: | 100, 100 kA |
| Number of Poles: | 3 |
| Series: | Tmax |
| Trip Type: | Electronic, PR331/P-LSIG |
| Type: | Very High Interrupt |
| Country of origin: | IT |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121616 |
| UPC: | 08015644687670 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB T8VBC3FE000000XX Molded Case Circuit Breaker
Brand: ABB
Part Number: T8VBC3FE000000XX
ABB Molded Case Circuit Breaker, Very High Interrupt, Series, 600, Amperage Rating VAC, A 1600, Frequency Rating, Hz 50/60, 100 Interrupt, Frame kA, A 1600, PR331/P-LSIG Trip, Trip Range, 3 Pole, Phase, Connection Type, Wire Size, Enclosure Type, Temperature Rating, 15 in H x 16.8 in W x 11.2 in D, Material, Finish
Additional Description: ABB -T8VBC3FE000000XX (N) T8V 1600 UL PR331/P LSIG IN=1600A 3P F F NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Tmax Molded Case Circuit Breaker, Amperage Rating 1600 (3P UL only), Trip Type PR331/P-LSIG, Interrupt Rating Very High, Auxiliary Contacts None
T8VBC3FE000000XX Application
For power distribution applicationsT8VBC3FE000000XX Item Features
- This construction characteristic allows for the CSA/UL listed field installation of internal accessories without exposure to energized parts
- Breakers from ABB ensure that the toggle indicates the precise position of the moving contacts, this guarantees safe and reliable signaling by the device
- Tmax molded case circuit breakers can be installed in panels and switchboards in either the horizontal or vertical planes while being fed from either end without any derating of their performance characteristics
- Compact size molded case circuit breaker
- All Tmax molded case circuit breakers are CSA/UL listed and IEC rated for global application and acceptance
- All versions of the Tmax family are suitable for reverse feed applications
- Very high interrupt rating class
- 1600 A frame rating
- 1600 A plug rating
- UL fixed 80% rated version
T8VBC3FE000000XX Standards
UL 489|File No. E93565|CSA C22.2 No. 5|File No. LR54280|IEC 60947-2SKU #2320797Part Number #T8VBC3FE000000XXUNSPSC39121616UPC08015644687670

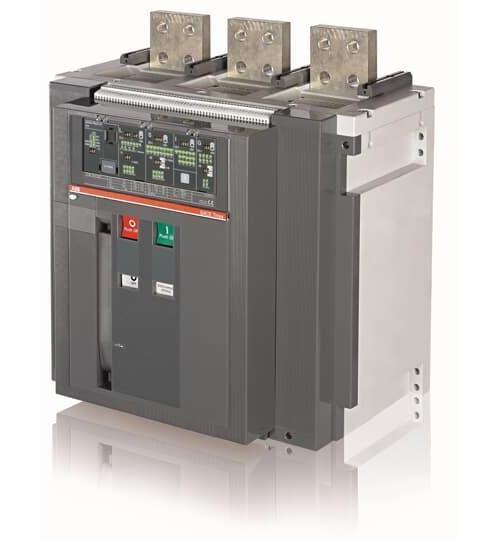

Image provided may only be a representation of final product and may include optional equipment
