Part Number # TED134040WL
SKU # 2414551
TED134040WL

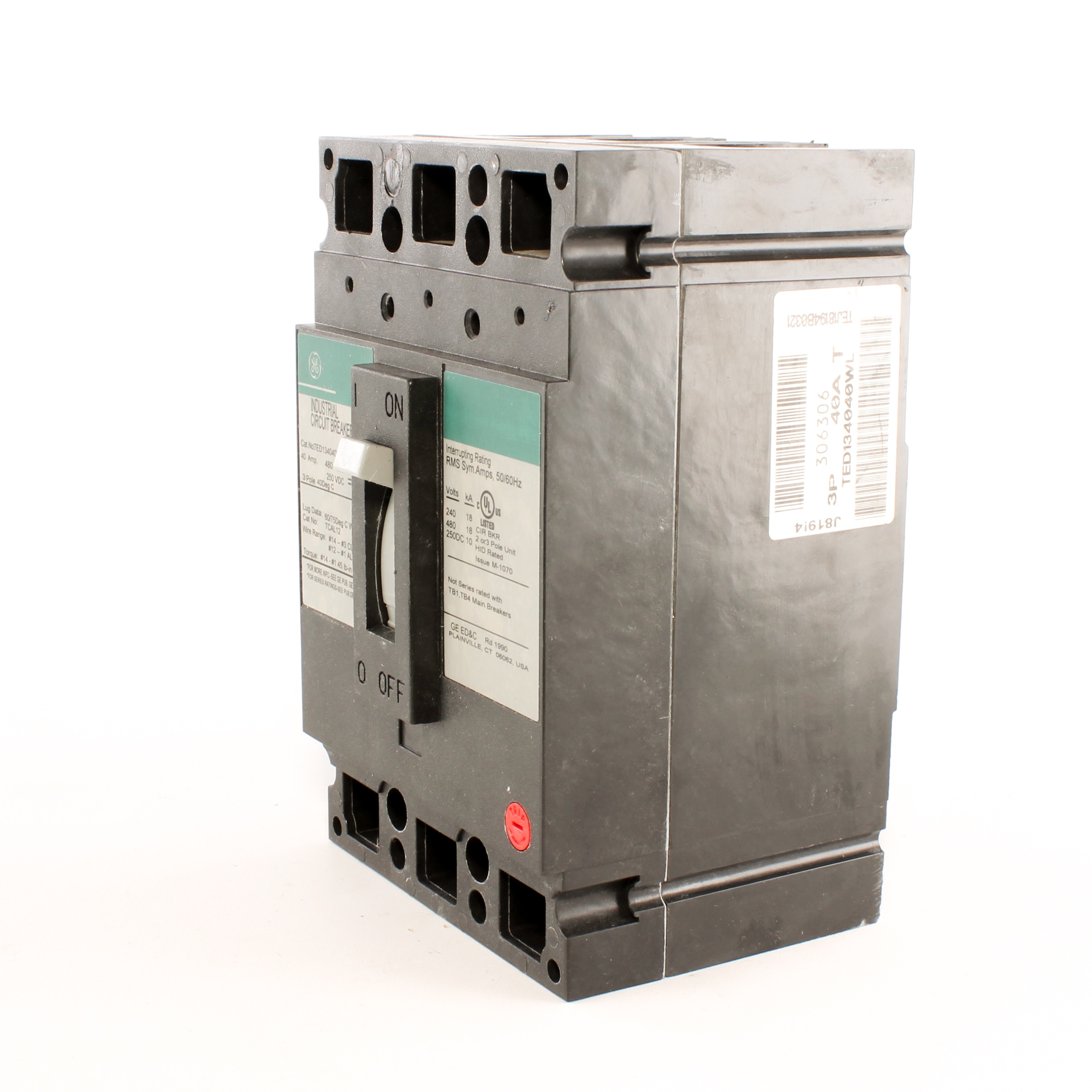

ABB TED134040WL GE Molded Case Circuit Breaker
Part Number # TED134040WL
SKU # 2414551
ABB TED134040WL Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | TED134040WL |
| SKU #: | 2414551 |
| Actuator Type: | Pivot/Toggle Handle |
| Dimensions: | 6-5/16 in H x 4-1/8 in W x 3-3/8 in D |
| Frame: | E150 |
| Temperature Rating (Degrees F): | 10 to 50 deg C |
| Trip Type: | LI/Non-Interchangeable Thermal Magnetic |
| Type: | Type TED Core E Mid Tier |
| Wire Size: | 8 AWG |
| UNSPSC: | 39121601 |
| UPC: | 00783164063066 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB TED134040WL GE Molded Case Circuit Breaker
Brand: ABB
Part Number: TED134040WL
Additional Description: ABB -TED134040WL (N) 3 POLE 480VAC 40A BREAKER NON-CANCELABLE, NON-RETURNABLE
Catalog Description: The E150 product line consists of Thermal Magnetic Circuit Breakers, Magnetic Circuit Breakers, and Molded-Case Switches rated up to 150 Amps and 600 Volts AC. Catalog numbers include the complete breaker or switch. The WL catalog number suffix indicates that the devices come with Cu/Al line and load lugs. 3 POLE 480VAC 40A BREAKER
TED134040WL Application
Industrial, Switchboards, Motor Control Centers and Lighting, Power, Customized Control Panelboards, Electrical Distribution and Control ApplicationsTED134040WL Item Features
- Molded case is molded from high mechanical and high dielectric strength engineered plastic
- Trip indication is shown by handle position midway between ON and off to reset the trip mechanism, move the handle to extreme off then to ON position
- Quick-make, quick-break, trip-free mechanism minimizes arcing during breaker operation, contacts cannot be teased into position
- Trip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in on position
- VERIFIER "twist-to-trip" and push-to-trip mechanically simulates over current tripping through actuation of linkages not operated by the on-off handle
- Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
- Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
- Arc chutes of heat absorbing, insulating material and metal grid plates quickly extinguish arcs
- UL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight in wiring
- Proven reliability
- Provide cost effective solutions
- Multiple types to fit in your application
- 10 kA at 125 VDC, 10 kA at 250 VDC, 10 kA at 500 VDC, 14 kA at 600 VAC, 18 kA at 120/240 VAC, 18 kA at 240 VAC, 18 kA at 277 VAC, 18 kA at 480 VAC interrupt rating
TED134040WL Standards
UL 489 File No. E11592|CSA File No. LR57114|Federal Specification W-C-375|HACR RatedSKU #2414551Part Number #TED134040WLUNSPSC39121601UPC00783164063066
Image provided may only be a representation of final product and may include optional equipment
