Part Number # THQB1115
SKU # 2407741
THQB1115

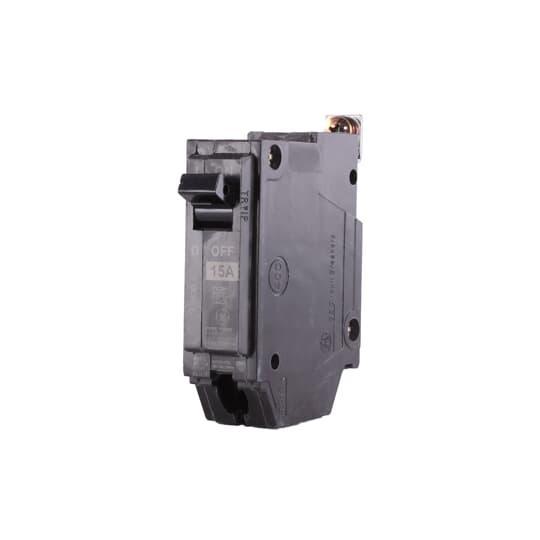

ABB THQB1115 Ge Q-Line Miniature Circuit Breaker
Part Number # THQB1115
SKU # 2407741
ABB THQB1115 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | THQB1115 |
| SKU #: | 2407741 |
| Amperage Rating: | 15 A |
| Dimensions: | 3-9/32 in H x 1 in W x 2-3/8 in D |
| Frame: | THQB |
| Interrupt Rating: | 10 kA |
| Number of Poles: | 1 |
| Phase: | 1 |
| Series: | A-Series II |
| Temperature Rating (Degrees F): | 60 to 75 deg C |
| Trip Type: | Non-Interchangeable, Thermal Magnetic |
| Wire Size: | 14 to 8 AWG, 12 to 8 AWG |
| Connection type: | Load Lug |
| Mounting type: | Bolted-On |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121603 |
| UPC: | 00783164012170 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB THQB1115 Ge Q-Line Miniature Circuit Breaker
Brand: ABB
Part Number: THQB1115
Additional Description: ABB -THQB1115 THQB MCB 15A 10KA 1P 120/240V
Catalog Description: Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications. 1115 Amps 15 A
THQB1115 Application
Electrical Distribution and Control, Commercial and Residential ApplicationsTHQB1115 Item Features
- Standard continuous current rated
- EB GO schedule
- Suitable for reverse feed
- Suitable for switching 120 VAC fluorescent lighting loads
THQB1115 Standards
GSA Compliant|UL File No. E11592|SWD RatedSKU #2407741Part Number #THQB1115UNSPSC39121603UPC00783164012170
Image provided may only be a representation of final product and may include optional equipment
